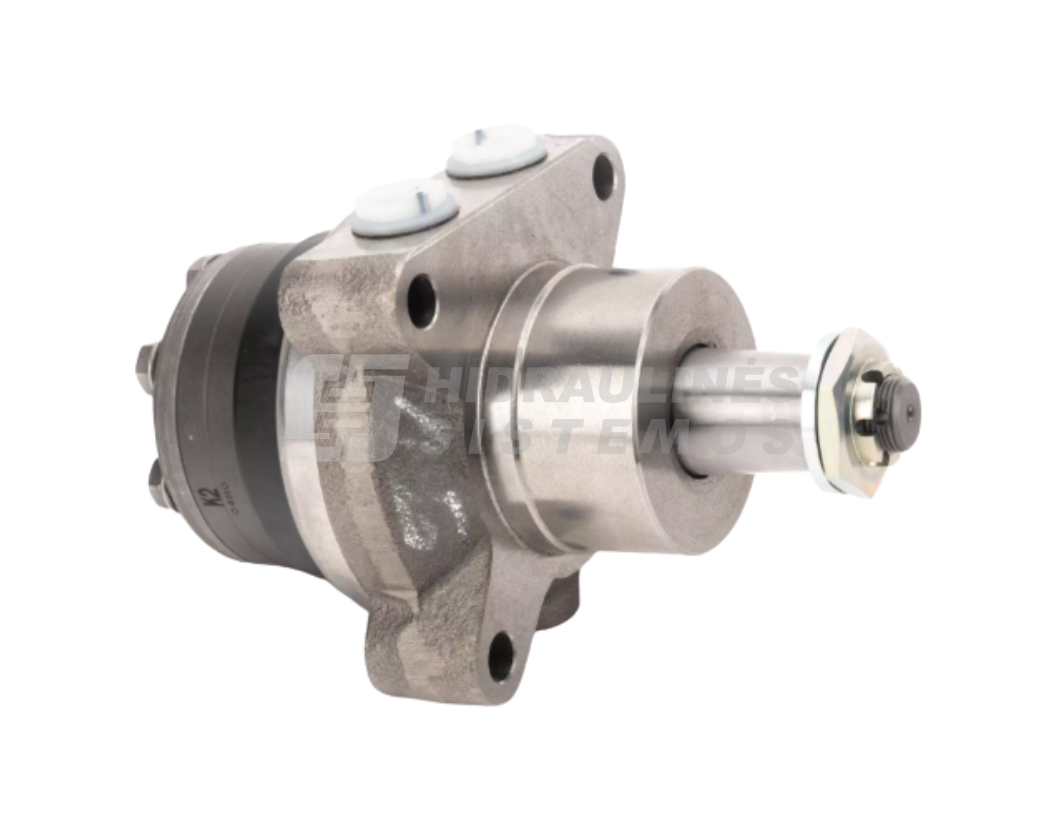

Hydraulic motor OMEW 315 K tapered 1:8, 31.75mm-1 1/4'' shaft 11070955 Danfoss
Hydraulic motor OMEW 315 K tapered 1:8, 31.75mm-1 1/4'' shaft 11070955 Danfoss
Add to wishlist

Hydraulic motor OMEW 315 K tapered 1:8, 31.75mm-1 1/4” shaft 11070955 Danfoss

800,00 € excl. VAT

White 11070955, OMEW315, 151h3085, 151H3095

Out of stock

White 11070955, OMEW315, 151h3085, 151H3095

Enter your email address and we will notify you as soon as the item is available.
SKU: OMEW315 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

Specification

Series: OMEW

Design: 2

Displacement: 315 cm³/rev

Dust seal: Standard

Front bearing: Needle roller bearing

Gear wheel set: Special gear wheel set

Model code: None

Mounting flange: 4 bolt – wheel, special

Mounting thread dimension:

• Pilot dia. 88.9 × 9.8 mm [3.50 × 0.38″]

• / 126.4 × 11.2 mm [4.98 × 0.44″]

• Bolt circle dia. 147.6 mm [5.81″]

• Hole dia. 13.6 mm [0.53″]

Port dimension: 7/8″-14 UNF

Port style: Side ported – aligned

Shaft style: Tapered – cone 1:8

Shaft size: Ø 1-1/4″ – 1-20 UNEF tapped end

Shaft key: Woodruff key 5/16 × 1″ (SAE J502)

Shaft seal: HNBR – high pressure

Seal kit: 11105376

Special features external: Motor housing – 4 × 5/16″-18 UNC threads for external brake

Special features internal: Motor rotation CCW

Additional information

Flange

For wheels 89mm, 147mm, 4 bolts
Manufacturer

Danfoss
Connections

7/8”-14 UNF
Connection side/rear

Side
Type

Orbital (Gerotor)
Volume

315
Shaft

Tapered 1:8, 31.75mm-1 1/4”
