Hydraulic motor MS 125 C 32mm shaft, BM3Y-125
298,00 € excl. VAT
EPMS125C, Danfoss ref. 151F0502 BM3Y-125 (SMS-125) 120200001040 BM3Y-125P10AY/T27
1 in stock
EPMS125C, Danfoss ref. 151F0502 BM3Y-125 (SMS-125) 120200001040 BM3Y-125P10AY/T27
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

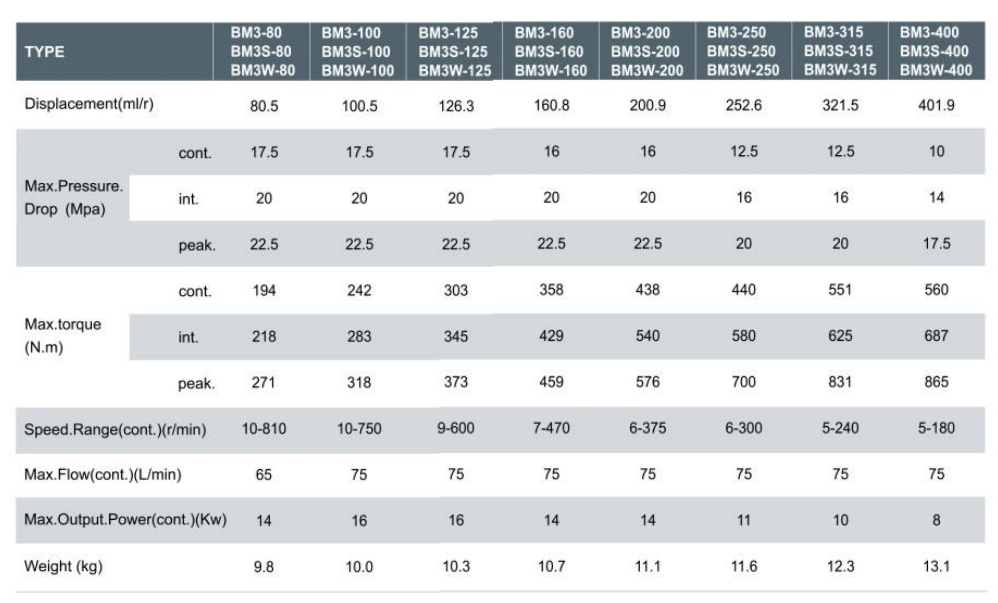

Specification
Type: BM3-125 / BM3S-125 / BM3W-125
Displacement: 126.3 ml/rev
Maximum pressure drop (continuous): 17.5 MPa
Maximum pressure drop (intermittent): 20 MPa
Maximum pressure drop (peak): 22.5 MPa
Maximum torque (continuous): 303 Nm
Maximum torque (intermittent): 345 Nm
Maximum torque (peak): 373 Nm
Speed range (continuous): 9–600 rpm
Maximum oil flow (continuous): 75 l/min
Maximum output power (continuous): 16 kW
Weight: 10.3 kg
Additional information
| Flange | 82.5mm, 106.4mm, 4 bolts |
|---|---|
| Manufacturer | ziHYD |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 125 |
| Shaft | 32mm |
