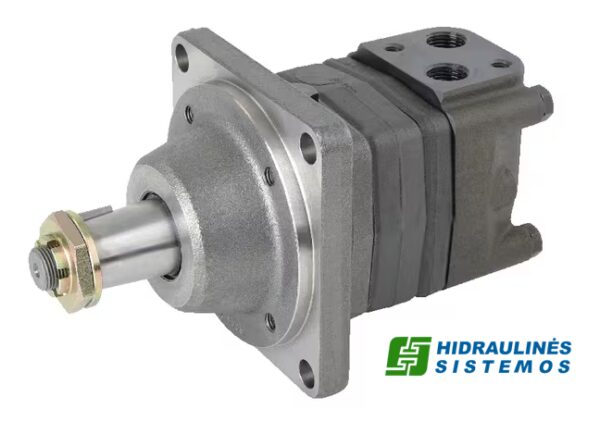

Hydraulic motor MSW 400 K tapered 1:10 shaft, WH
935,00 € excl. VAT
OMSW400151F0609
4 in stock
OMSW400151F0609
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Specification
Series: OMSW (O-Series)
Active: Yes
Displacement: 400 cm³/rev

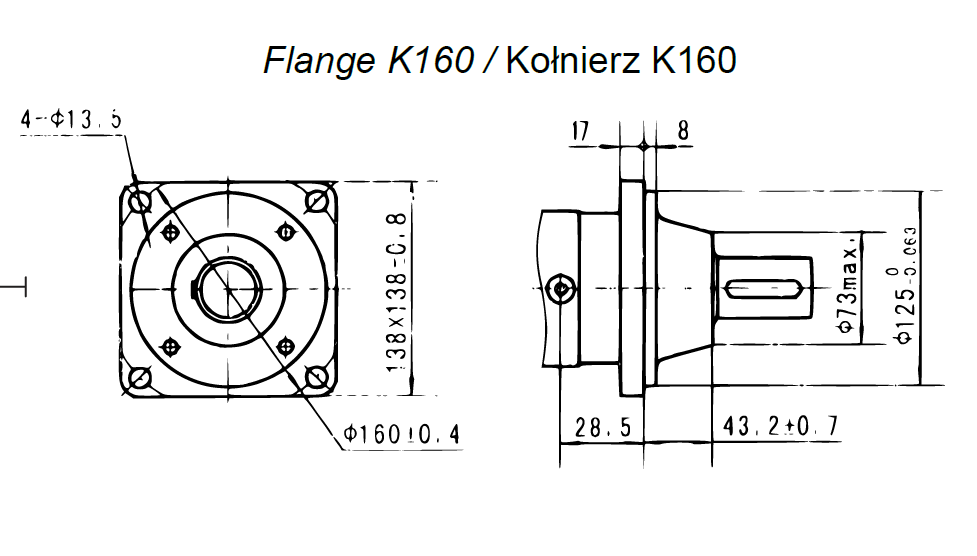

Mounting flange: 4-bolt – Wheel type
Pilot diameter / height: Ø125 × 8 mm
Bolt circle diameter (B.C.): Ø160 mm
Mounting hole diameter: Ø13.6 mm
Shaft:
-
type: Tapered (cone 1:10)
-
diameter: Ø35 mm
-
end thread: M20 × 1.5
-
key: B6 × 6 × 20 mm (DIN 6885)
Bearings: Tapered roller bearing (front)
Shaft seal: NBR – standard
Dust seal: Standard
Valve type: Standard
Drain port style: Standard – motor flange
Ports:
-
working ports (A, B): G 1/2
-
drain port (T): G 1/4
-
port style: Side ported – offset manifold (2 × M10)
Seal kit: 151F0111
Additional information
| Flange | For wheels 125mm, 160mm, 4 bolts |
|---|---|
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 400 |
| Shaft | Tapered 1:10, |
