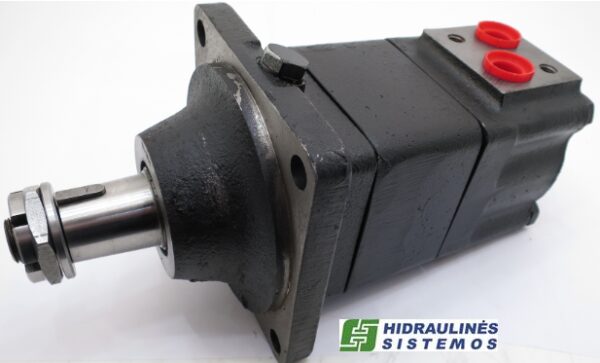

Hydraulic motor MSW 400 K tapered 1:10 shaft
500,00 € excl. VAT
MSW400 0303803 ALSG3W-400-K125-S8-01 OMSW400K
Out of stock
MSW400 0303803 ALSG3W-400-K125-S8-01 OMSW400K
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

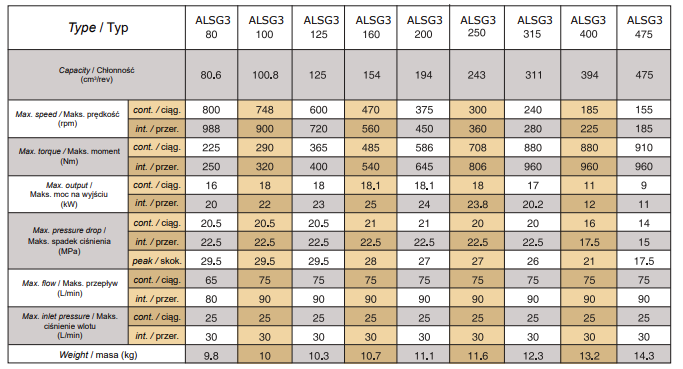

Specification
Type: ALSG3 400
Displacement: 394 cm³/rev
Maximum speed:
-
continuous: 185 rpm
-
intermittent: 225 rpm
Maximum torque:
-
continuous: 880 Nm
-
intermittent: 960 Nm
-
peak: 960 Nm
Maximum output power:
-
continuous: 11 kW
-
intermittent: 12 kW
Maximum pressure drop:
-
continuous: 16 MPa (160 bar)
-
intermittent: 17.5 MPa (175 bar)
-
peak: 21 MPa (210 bar)
Maximum oil flow:
-
continuous: 75 l/min
-
intermittent: 90 l/min
Maximum inlet pressure:
-
continuous: 25 MPa (250 bar)
-
intermittent: 30 MPa (300 bar)
Weight: 13.2 kg
Additional information
| Flange | For wheels 125mm, 160mm, 4 bolts |
|---|---|
| Manufacturer | Amberline Hydraulics |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 400 |

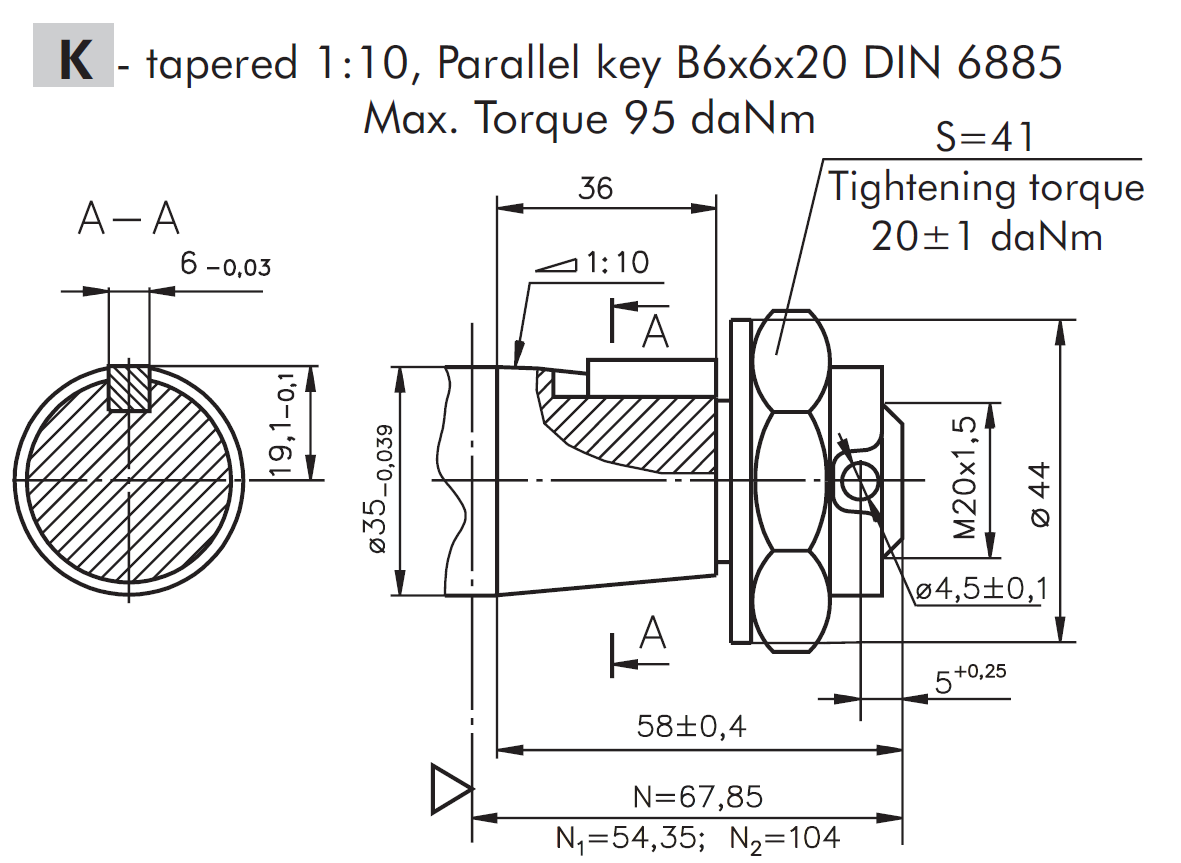

| Shaft | Tapered 1:10, |
