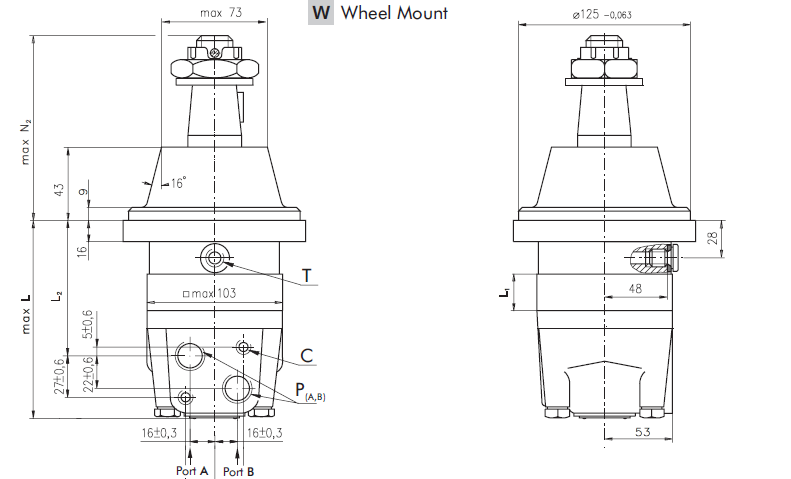

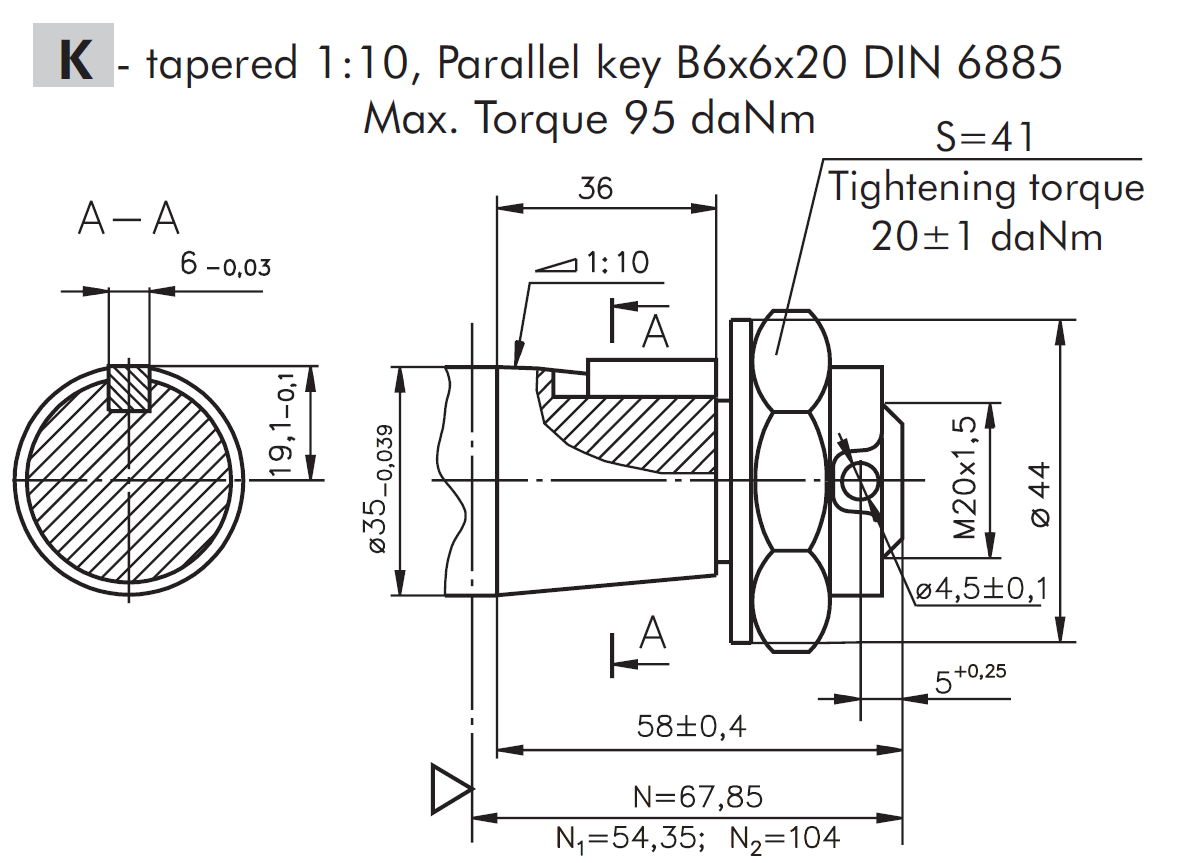

Hydraulic motor MSW 315 K tapered 1:10 shaft

Description

Specification

Type: MS 315

Displacement: 315 cm³/rev (317.5 cm³/rev)

Max speed:

• continuous: 240 rpm

• intermittent: 280 rpm

Max torque:

• continuous: 55.0 daNm (≈ 550 Nm)

• intermittent: 69.0 daNm (≈ 690 Nm)

• peak: 84.0 daNm (≈ 840 Nm)

Max output power:

• continuous: 9.0 kW

• intermittent: 10.0 kW

Max pressure drop:

• continuous: 135 bar

• intermittent: 175 bar

• peak: 175 bar

Max oil flow:

• continuous: 60 l/min

• intermittent: 75 l/min

Max inlet pressure:

• continuous: 210 bar

• intermittent: 250 bar

• peak: 300 bar

Max return pressure with drain line:

• continuous: 140 bar

• intermittent: 175 bar

• peak: 210 bar

Min. starting pressure (unloaded): 7 bar

Min. starting torque:

• at max pressure drop (cont.): 41.0 daNm

• at max pressure drop (int.): 47.0 daNm

Min. speed: 5 rpm

Weight range (depending on version): 7.5–18.2 kg
