Hydraulic motor MSW 315 K tapered 1:10 shaft, ALSG3W-315-K125-S10-01 Ambr
465,00 € excl. VAT
BMSW 315, OMSW 315, SMSW 315, MSW315K, ALSG3W-315-K125-S10-01
Out of stock
BMSW 315, OMSW 315, SMSW 315, MSW315K, ALSG3W-315-K125-S10-01
Product information
Description
Specification
Type: ALSG3 315
Displacement: 311 cm³/rev
Maximum speed:
-
continuous: 240 rpm
-
intermittent: 280 rpm
Maximum torque:
-
continuous: 880 Nm
-
intermittent: 960 Nm
-
peak: 960 Nm
Maximum output power:
-
continuous: 20.2 kW
-
intermittent: 23.8 kW
Maximum pressure drop:
-
continuous: 20 MPa (200 bar)
-
intermittent: 22.5 MPa (225 bar)
-
peak: 26 MPa (260 bar)
Maximum oil flow:
-
continuous: 75 l/min
-
intermittent: 90 l/min
Maximum inlet pressure:
-
continuous: 25 MPa (250 bar)
-
intermittent: 30 MPa (300 bar)
Weight: 12.3 kg
Additional information

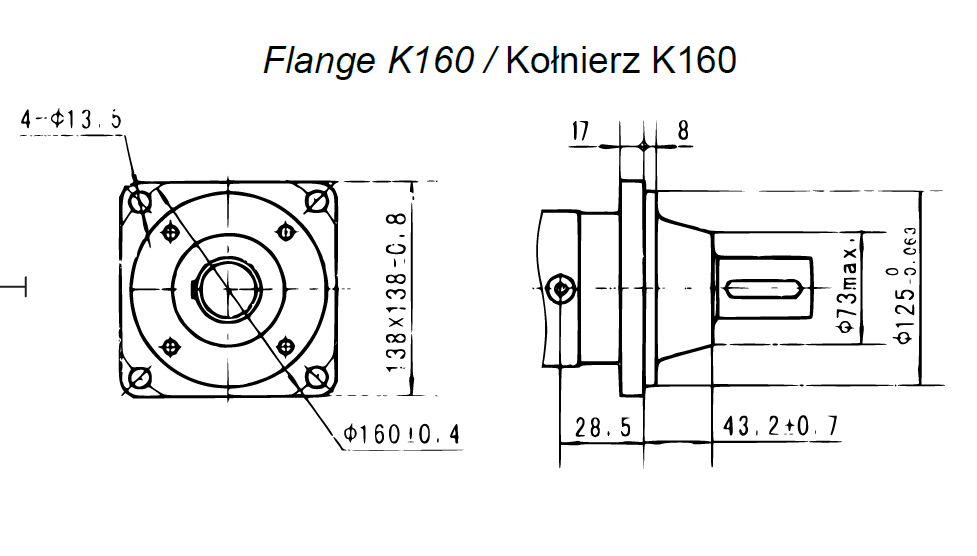

| Flange | For wheels 125mm, 160mm, 4 bolts |
|---|---|
| Manufacturer | Amberline Hydraulics |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 315 |
| Shaft | Tapered 1:10, |
