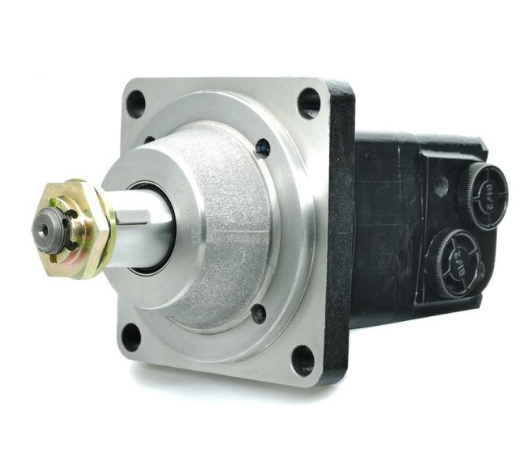

Hydraulic motor MSW 250 K tapered 1:10 shaft

Description

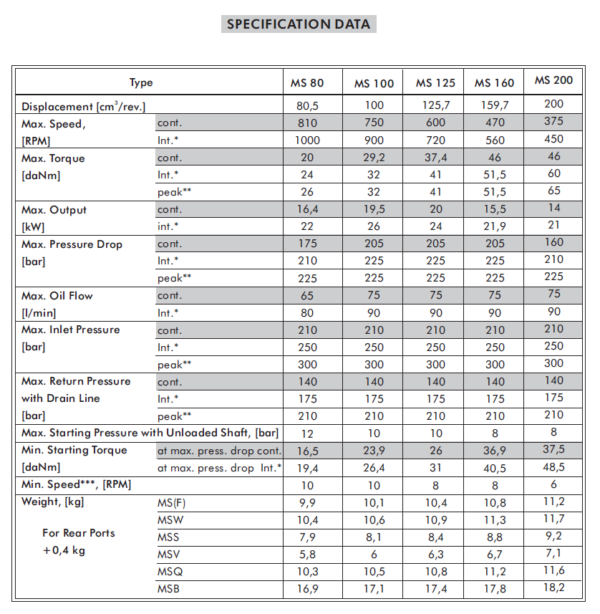

Specification

Type: MS 250

Displacement: 250 cm³/rev (253.3 cm³/rev)

Max speed:

• continuous: 300 rpm

• intermittent: 360 rpm

Max torque:

• continuous: 70.8 daNm (≈ 708 Nm)

• intermittent: 80.6 daNm (≈ 806 Nm)

• peak: 84.0 daNm (≈ 840 Nm)

Max output power:

• continuous: 18 kW

• intermittent: 23.8 kW

Max pressure drop:

• continuous: 200 bar

• intermittent: 225 bar

• peak: 225 bar

Max oil flow:

• continuous: 75 l/min

• intermittent: 90 l/min

Max inlet pressure:

• continuous: 210 bar

• intermittent: 250 bar

• peak: 300 bar

Max return pressure with drain line:

• continuous: 140 bar

• intermittent: 175 bar

• peak: 210 bar

Min. starting pressure (unloaded): 8 bar

Min. starting torque:

• at max pressure drop (cont.): 37.5 daNm

• at max pressure drop (int.): 48.5 daNm

Min. speed: 6 rpm

Weight range (depending on version): 7.1–18.2 kg
