Hydraulic motor MSW 200 K tapered 1:10 shaft

Full product specification

450,00 € excl. VAT

EPMSW200K OMSW200K 151F0551 151F0551-3 ALSG3W-200-K125-S10-01

Out of stock

EPMSW200K OMSW200K 151F0551 151F0551-3 ALSG3W-200-K125-S10-01

Enter your email address and we will notify you as soon as the item is available.
SKU: HMSW200 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

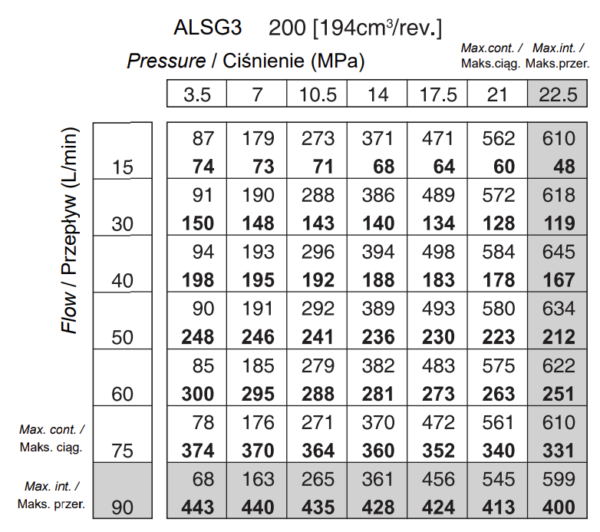

Specification

Type / series: ALSG3

Nominal displacement: 200 cm³/rev (194 cm³/rev)

Max speed (continuous): 375 rpm

Max speed (intermittent): 450 rpm

Max torque (continuous): 586 Nm

Max torque (intermittent): 645 Nm

Max output power (continuous): 18.1 kW

Max output power (intermittent): 24 kW

Max pressure drop (continuous): 21 MPa

Max pressure drop (intermittent): 22.5 MPa

Peak pressure drop: 27 MPa

Max oil flow (continuous): 75 l/min

Max oil flow (intermittent): 90 l/min

Max inlet pressure (continuous): 25 MPa

Max inlet pressure (intermittent): 30 MPa

Weight: 11.1 kg

Additional information

Flange

For wheels 125mm, 160mm, 4 bolts
Manufacturer

Amberline Hydraulics
Connections

BSP 1/2”
Connection side/rear

Side
Type

Orbital (Gerotor)
Volume

200

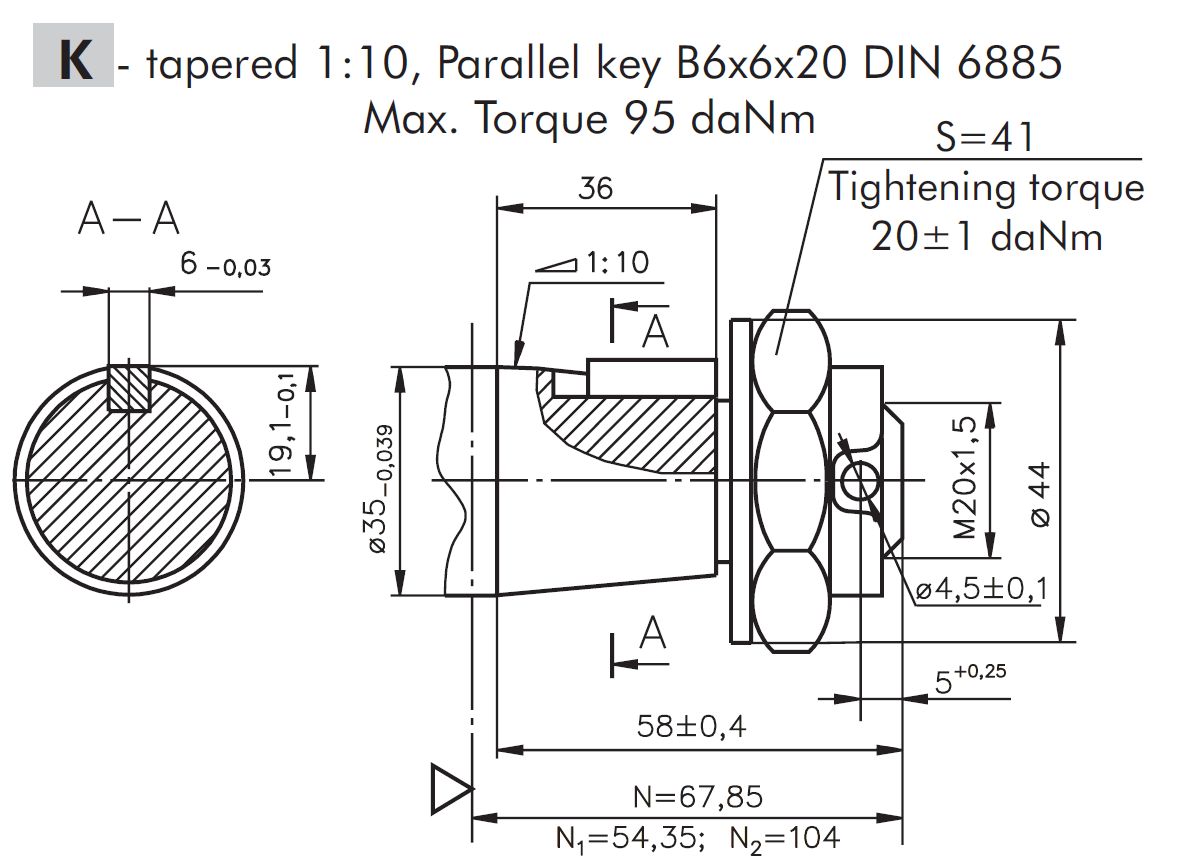

Shaft

Tapered 1:10,
