Hydraulic motor MS 400 C 32mm shaft, BM3Y-400
453,75 € incl. VAT
EPMS400 BM3Y-400P10AY/T11 120200001130 SMS400A432YKR
Out of stock
EPMS400 BM3Y-400P10AY/T11 120200001130 SMS400A432YKR
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.

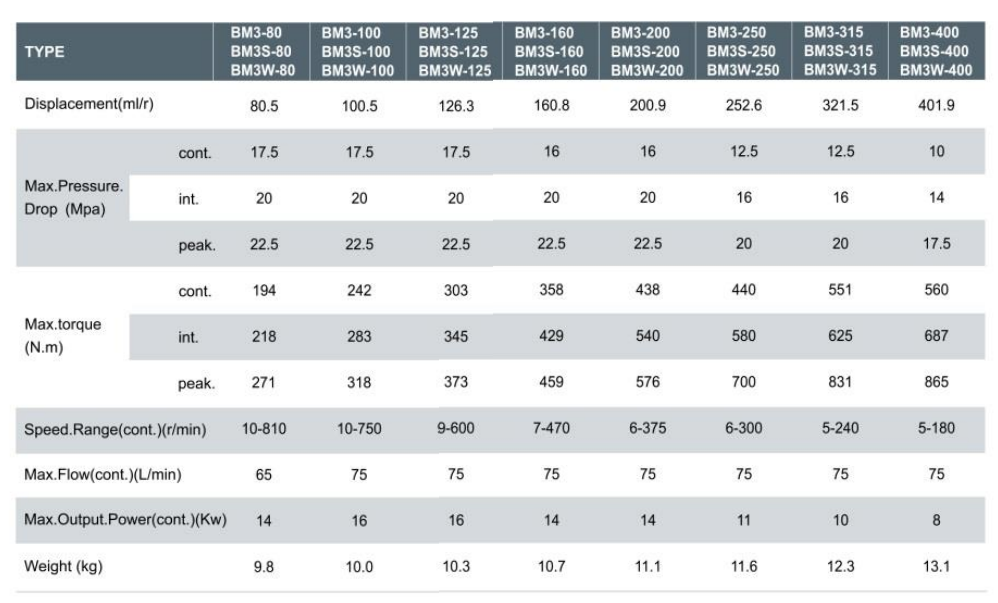

Product information
Description
Specification
Type: BM3-400 / BM3S-400 / BM3W-400
Displacement: 401.9 cm³/rev
Max speed (continuous): 180 rpm
Speed range (continuous): 5–180 rpm
Max pressure drop:
– continuous: 10 MPa
– intermittent: 14 MPa
– peak: 17.5 MPa
Max torque:
– continuous: 560 Nm
– intermittent: 687 Nm
– peak: 865 Nm
Max oil flow (continuous): 75 l/min
Max output power (continuous): 8 kW
Weight: 13.1 kg
Additional information
| Flange | 82.5mm, 106.4mm, 4 bolts |
|---|---|
| Manufacturer | ziHYD |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 400 |
| Shaft | 32mm |
