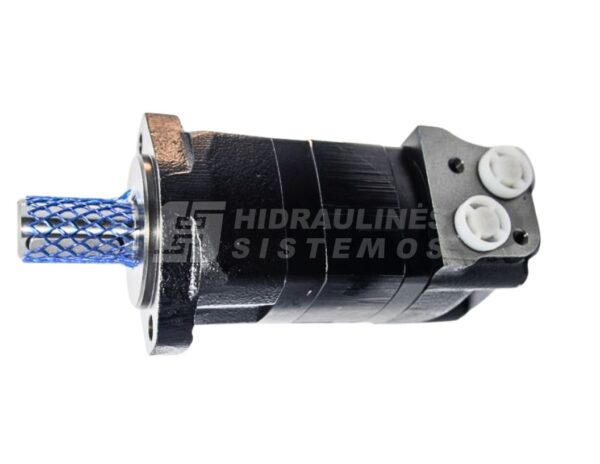

Hydraulic motor MS 400 C 32mm shaft, ALSG3-400-O2-C32-01 Ambr
Original price was: 252,00 €.232,00 €Current price is: 232,00 €. excl. VAT
EPMS400C ALSG3-400-O2-C32-01
Out of stock
EPMS400C ALSG3-400-O2-C32-01
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Specification

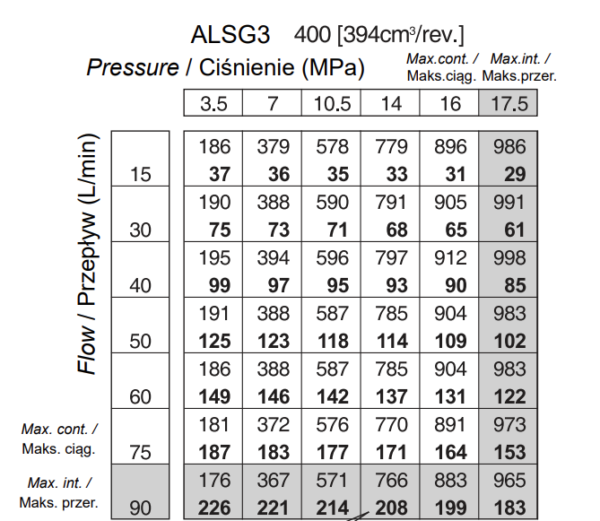

Series: ALSG3
Displacement: 394 cm³/rev
Max speed (continuous): 185 rpm
Max speed (intermittent): 225 rpm
Max torque (continuous): 880 Nm
Max torque (intermittent): 960 Nm
Max output power (continuous): 11 kW
Max output power (intermittent): 12 kW
Max pressure drop (continuous): 16 MPa
Max pressure drop (intermittent): 17.5 MPa
Max pressure drop (peak): 21 MPa
Max oil flow (continuous): 75 l/min
Max oil flow (intermittent): 90 l/min
Max inlet pressure (continuous): 25 MPa
Max inlet pressure (intermittent): 30 MPa
Weight: 13.2 kg
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | Amberline Hydraulics |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 400 |

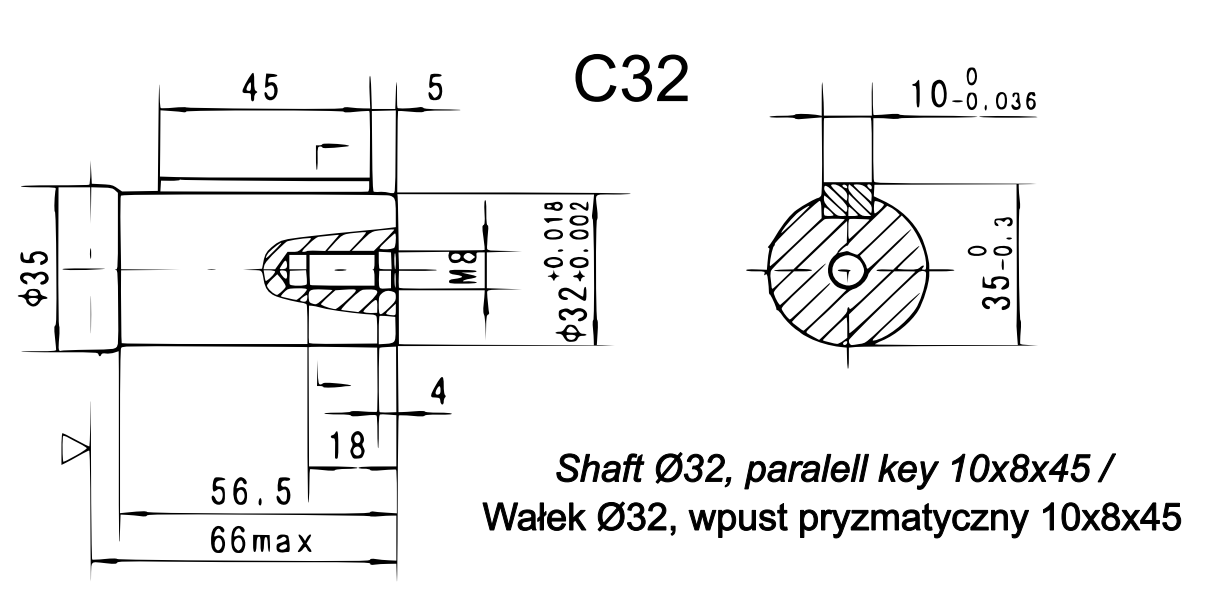

| Shaft | 32mm |
