Hydraulic motor MS 315 SL 6-tooth 34.85mm shaft
450,00 € excl. VAT
MS 315 SL 151F0566 151F0266 OMS315 EPMS315
Out of stock
MS 315 SL 151F0566 151F0266 OMS315 EPMS315
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Specification
| Series: OMS (O-Series) |
| Active: Yes |
| Displacement: 315 cm³/rev |
| Drain port style: Standard – motor flange |
| Dust seal: Standard |
| Front bearing: Tapered roller bearing |

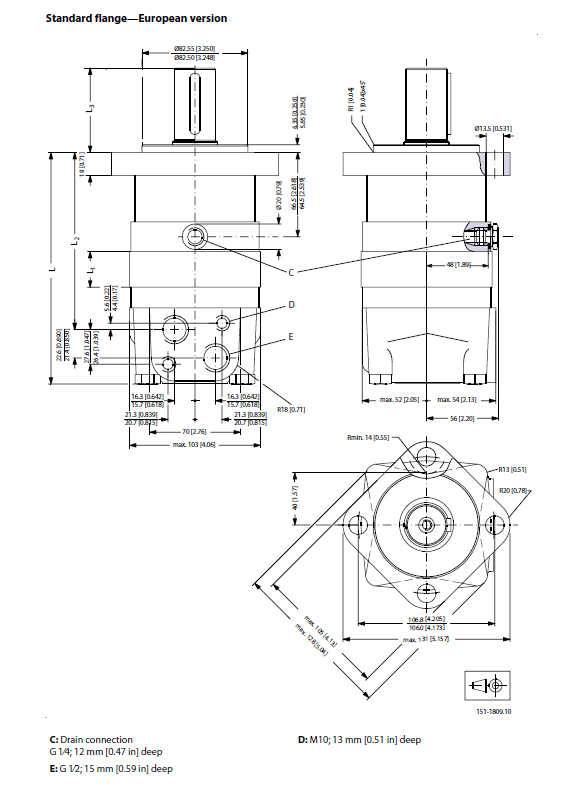

| Mounting flange: 4-bolt – square |
| Mounting thread dimensions: Pilot Ø 82.5 × 6.1 mm; B.C. Ø 106.4 mm; hole Ø 13.6 mm |
| Port dimensions: G 1/2 (A, B), G 1/4 (T) |
| Port style: Side ported – offset manifold (2 × M10) |
| Shaft style: PTO |
| Shaft size: 1-3/8 inch tap |
| Shaft seal: NBR – standard |
| Seal kit: 151F0117 |
| Design code: 3 |
| Packaging: Single pack |
| Type key: Not specified |
Additional information
| Flange | 82.5mm, 106.4mm, 4 bolts |
|---|---|
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 315 |
| Shaft | 6 teeth, 34.85mm |
