Hydraulic motor MS 315 C 32mm shaft, BM3Y-315
387,20 € incl. VAT
EPMS315 BM3Y-315 120200001120
Out of stock
EPMS315 BM3Y-315 120200001120
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Specification
| Type: BM3 / BMS / BMSW 315 |
| Geometric displacement: 321.5 cm³/rev |
| Max speed (continuous): 240 rpm |
| Max speed (intermittent): 300 rpm |
| Max torque (continuous): 551 Nm |
| Max torque (intermittent): 625 Nm |
| Max torque (peak): 831 Nm |
| Max pressure drop (continuous): 12.5 MPa |
| Max pressure drop (intermittent): 16 MPa |
| Max pressure drop (peak): 20 MPa |
| Speed range (continuous): 5–240 rpm |
| Max oil flow (continuous): 75 l/min |
| Max output power (continuous): 10 kW |
| Weight: 12.3 kg |
Additional information
| Flange | 82.5mm, 106.4mm, 4 bolts |
|---|---|
| Manufacturer | ziHYD |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 315 |

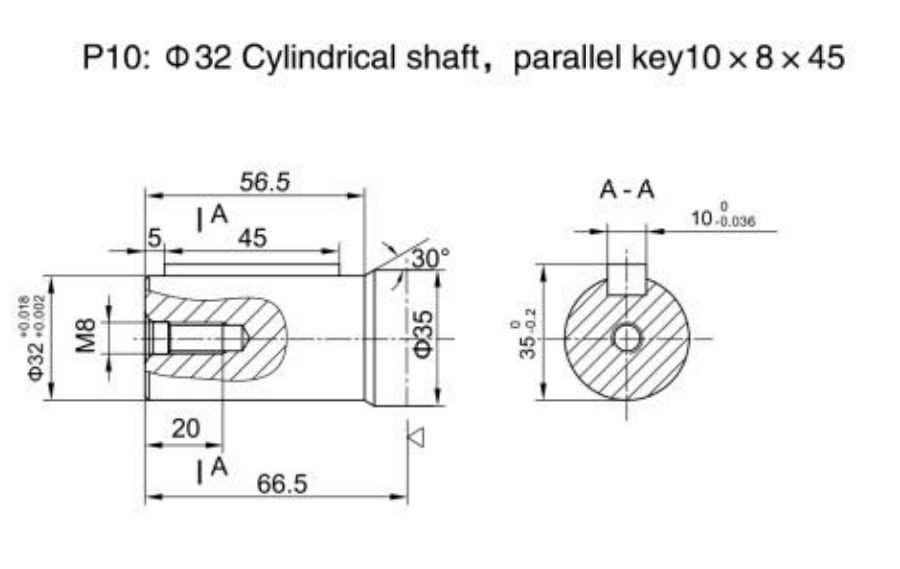

| Shaft | 32mm |
