Hydraulic motor MS 250 WOM 6-tooth 34.85mm shaft, ALSG3-250-R4-WOM-01 Ambr

270,00 € excl. VAT

ALSG3-250-R4-WOM-01 21014295

Out of stock

ALSG3-250-R4-WOM-01 21014295

Enter your email address and we will notify you as soon as the item is available.

SKU: HMS250W Category: MS - type OMS BMS MC2 2000-series

Free delivery

for orders from €100

Product returns

within 30 business days

Fast pickup

in store

Have questions? Didn’t find the product?

Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.

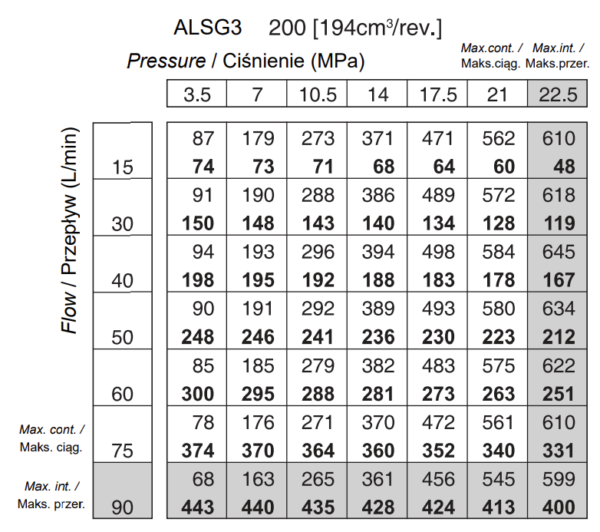

Specifications

Specification

(Type: ALSG3 200)

Data:

Displacement: 194 cm³/rev

Max. speed (continuous): 375 rpm

Max. speed (intermittent): 450 rpm

Max. torque (continuous): 586 Nm

Max. torque (intermittent): 645 Nm

Max. output power (continuous): 18.1 kW

Max. output power (intermittent): 24 kW

Max. pressure drop (continuous): 21 MPa

Max. pressure drop (intermittent): 22.5 MPa

Max. pressure drop (peak): 27 MPa

Max. oil flow (continuous): 75 l/min

Max. oil flow (intermittent): 90 l/min

Max. inlet pressure (continuous): 25 bar

Max. inlet pressure (intermittent): 30 bar

Weight: 11.1 kg
