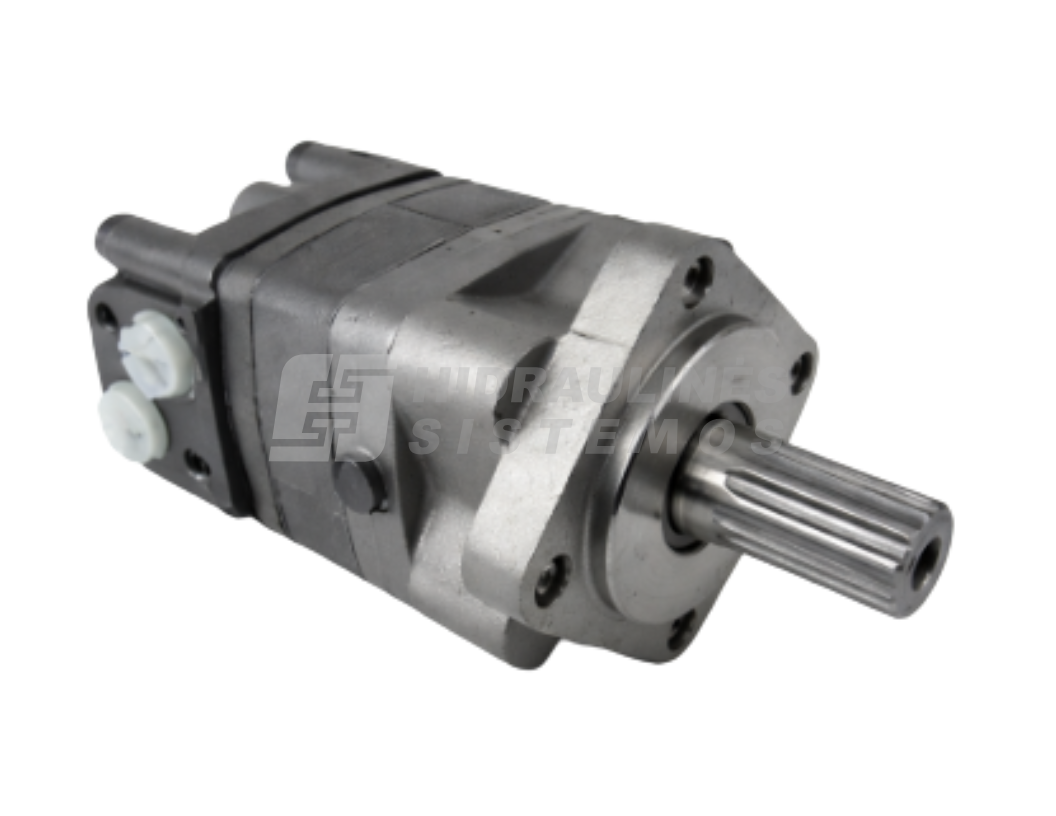

Hydraulic motor MS 160 SH Z14 14-tooth shaft
499,00 € excl. VAT
EPMS160SH 14 splined, shaft 1,25″ BM3Y160K23AYT11 OMS160 151-F0510
Out of stock
EPMS160SH 14 splined, shaft 1,25″ BM3Y160K23AYT11 OMS160 151-F0510
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Specification
(Type: BM3-160 / BM3S-160 / BM3W-160)
Data:
Displacement: 160.8 cm³/rev
Max. pressure drop (continuous): 16 MPa
Max. pressure drop (intermittent): 20 MPa
Max. pressure drop (peak): 22.5 MPa
Max. torque (continuous): 358 Nm
Max. torque (intermittent): 429 Nm
Max. torque (peak): 459 Nm
Continuous speed range: 7–470 rpm
Max. oil flow (continuous): 75 l/min
Max. output power (continuous): 14 kW
Weight: 10.7 kg
Additional information
| Flange | 82.5mm, 106.4mm, 4 bolts |
|---|---|
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 160 |
| Shaft | 14 teeth, 31.75mm-1’1/4” |
