Hydraulic motor MS 160 C 32mm shaft
285,00 € excl. VAT
EPMS160C
Out of stock
EPMS160C
Product information
Description

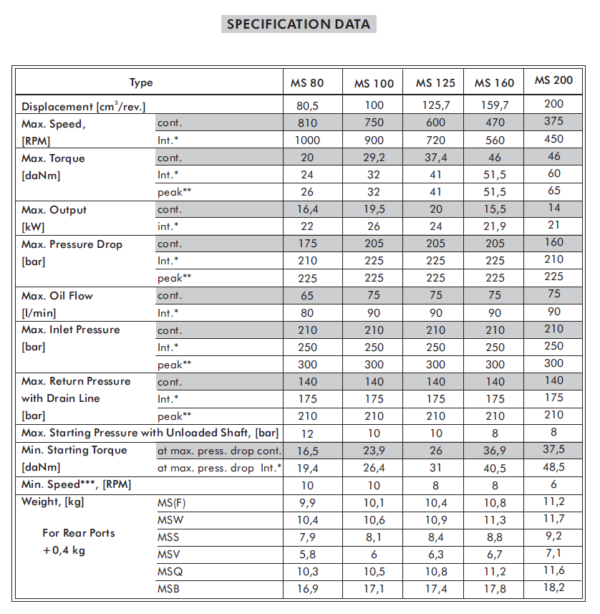

Specification
Type: MS 160
Displacement: 159.7 cm³/rev
Max speed (continuous): 470 rpm
Max speed (intermittent): 560 rpm
Max torque (continuous): 46 daNm
Max torque (intermittent): 51.5 daNm
Max torque (peak): 51.5 daNm
Max output power (continuous): 15.5 kW
Max output power (intermittent): 21.9 kW
Max pressure drop (continuous): 205 bar
Max pressure drop (intermittent): 225 bar
Max pressure drop (peak): 225 bar
Max oil flow (continuous): 75 l/min
Max oil flow (intermittent): 90 l/min
Max inlet pressure (continuous): 210 bar
Max inlet pressure (intermittent): 250 bar
Max inlet pressure (peak): 300 bar
Max return pressure with drain line (continuous): 140 bar
Max return pressure with drain line (intermittent): 175 bar
Max return pressure with drain line (peak): 210 bar
Max starting pressure with unloaded shaft: 8 bar
Min starting torque (at max pressure drop, cont.): 36.9 daNm
Min starting torque (at max pressure drop, int.): 40.5 daNm
Min speed: 8 rpm
Weight MS(F): 10.8 kg
Additional information
| Flange | 82.5mm, 106.4mm, 4 bolts |
|---|---|
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 160 |
| Shaft | 32mm |
