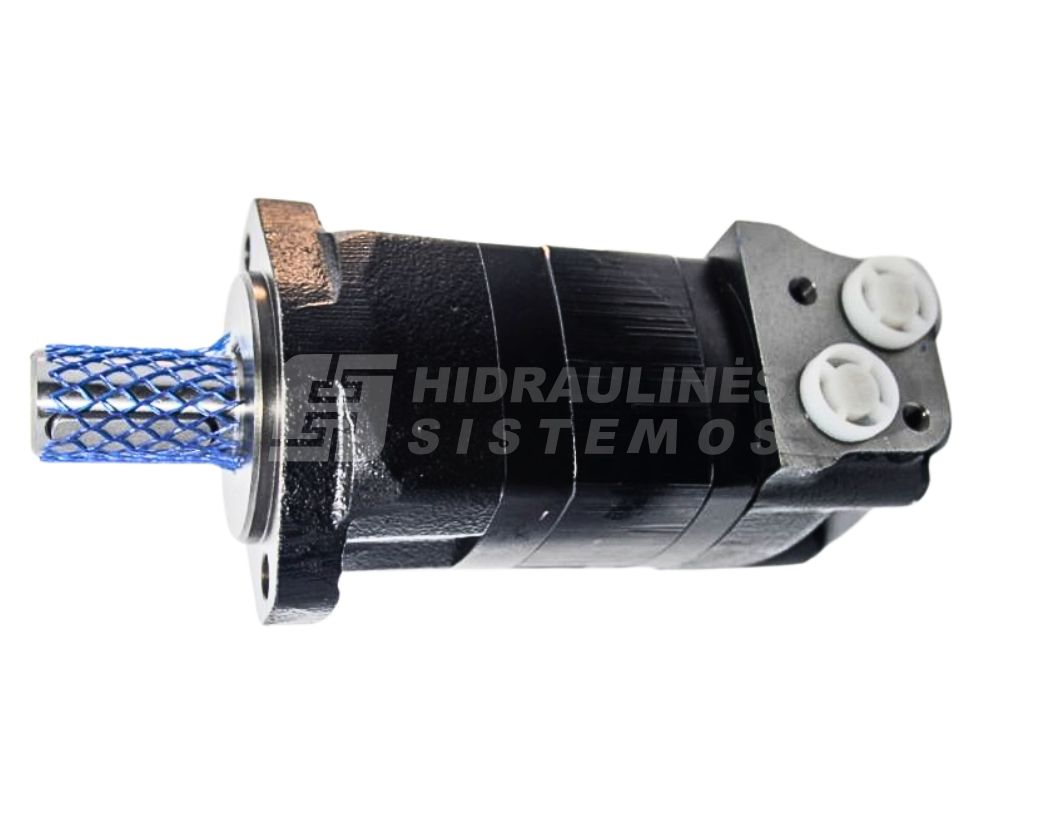

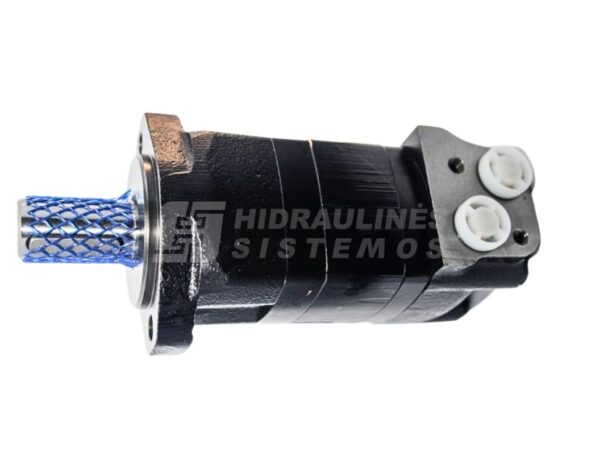

Hydraulic motor MS 160 C 32mm shaft, ALSG3-160-O2-C32-01 Ambr
Original price was: 248,00 €.228,50 €Current price is: 228,50 €. excl. VAT
EPMS160C ALSG3-160-O2-C32-01
Out of stock
EPMS160C ALSG3-160-O2-C32-01
Product information
Description
Specification

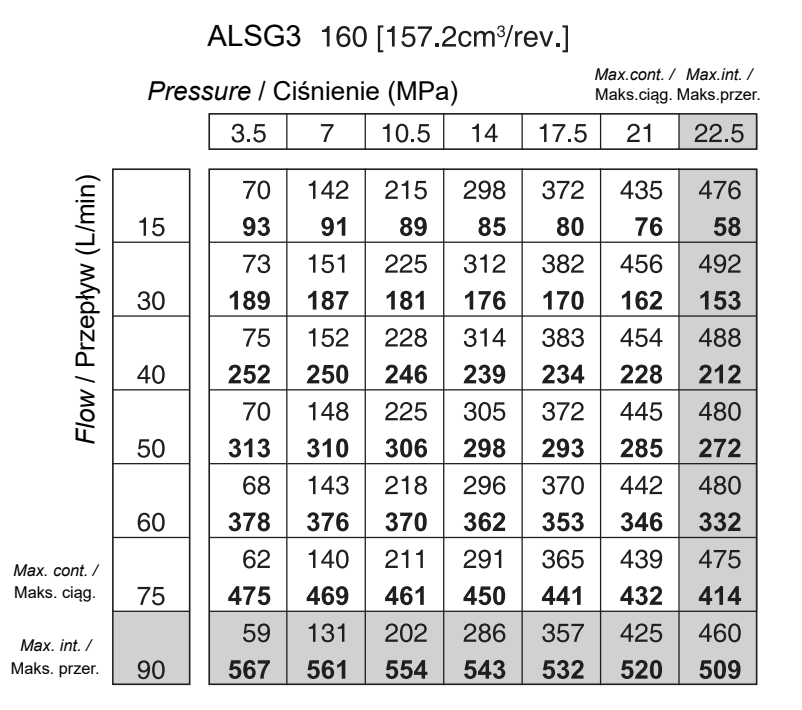

Type: ALSG3 160
Displacement: 154 cm³/rev
Max speed (continuous): 470 rpm
Max speed (intermittent): 560 rpm
Max torque (continuous): 365 Nm
Max torque (intermittent): 540 Nm
Max torque (peak): 560 Nm
Max output power (continuous): 18.1 kW
Max output power (intermittent): 25 kW
Max pressure drop (continuous): 21 MPa
Max pressure drop (intermittent): 22.5 MPa
Max pressure drop (peak): 28 MPa
Max oil flow (continuous): 75 l/min
Max oil flow (intermittent): 90 l/min
Max inlet flow (continuous): 25 l/min
Max inlet flow (intermittent): 30 l/min
Weight: 10.7 kg
Additional information

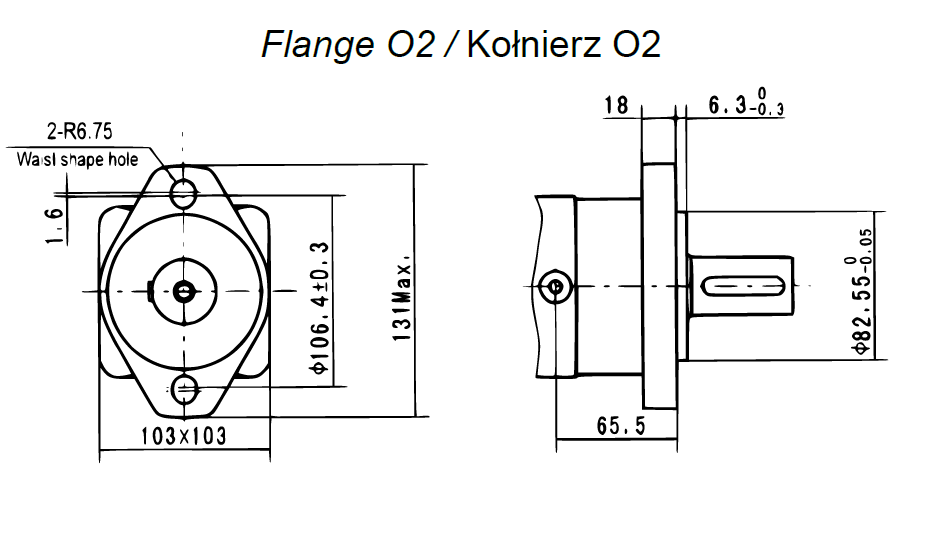

| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | Amberline Hydraulics |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 160 |

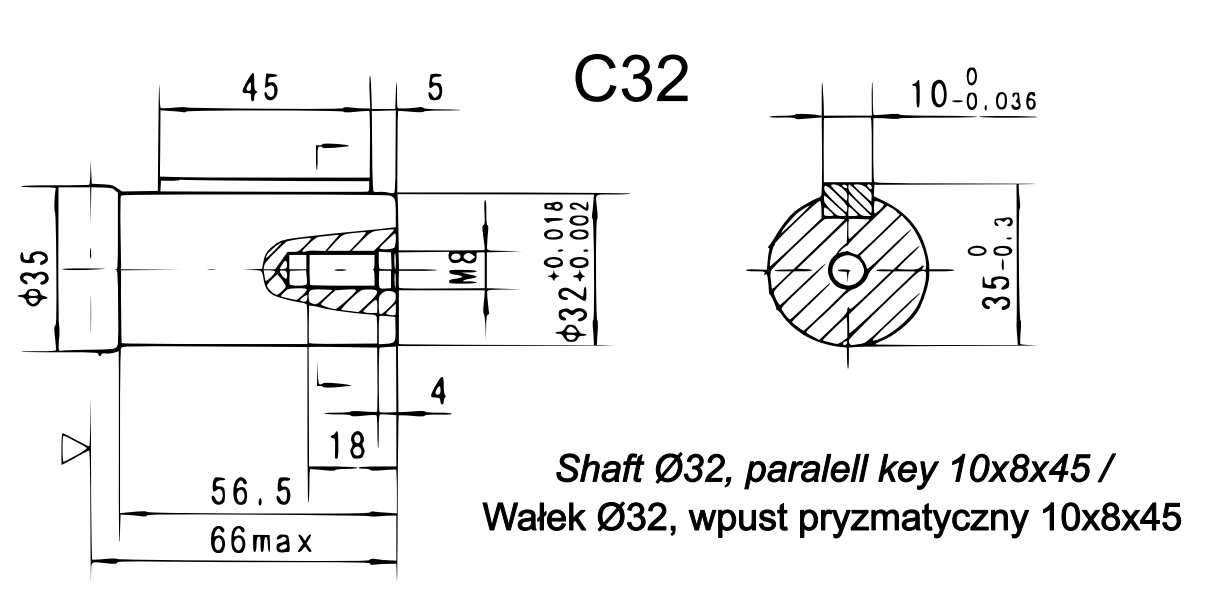

| Shaft | 32mm |
