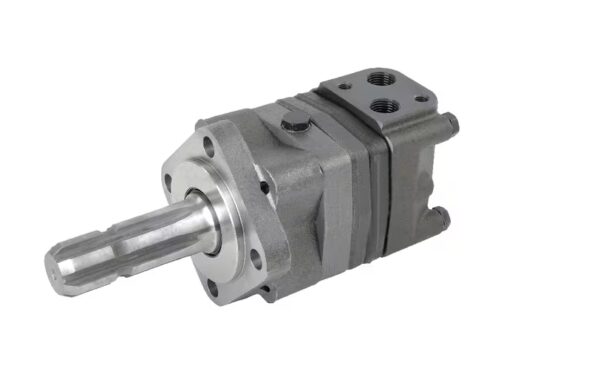

Hydraulic motor MS 100 Z 6-tooth shaft
985,00 € excl. VAT
OMS100151F0561
Out of stock
OMS100151F0561
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Specification
Series: OMS
Drain port style: Standard – motor flange
Dust seal: Standard
Front bearing: Tapered roller bearing
Mounting flange: 4 bolt – square
Packaging: Single pack
Port dimensions: G 1/2, G 1/4
Port style: Side ported – offset manifold (2 × M10)
Displacement: 100 cm³/rev
Seal kit: 151F0117
Product series: O-Series
Shaft seal: NBR – standard
Shaft size: 1-3/8 inch – tapped
Shaft style: PTO
Design: 3

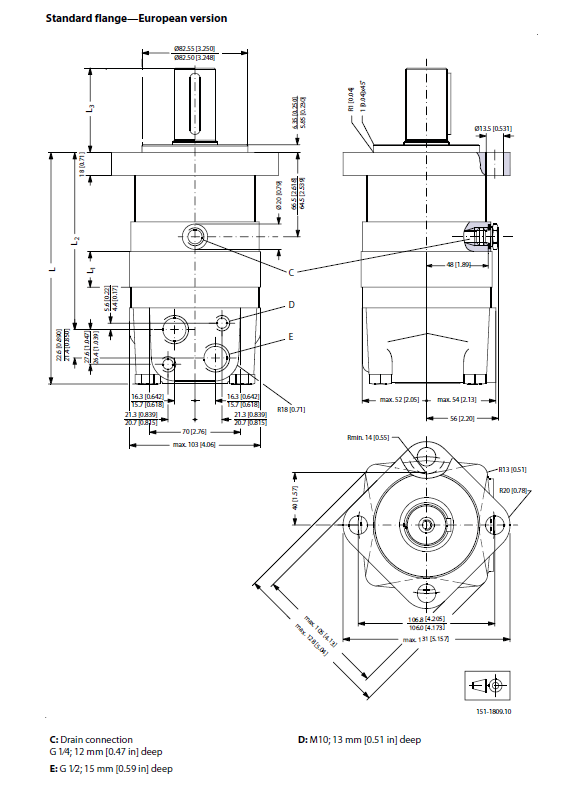

Mounting dimensions: Pilot Ø 82.5 × 6.1 mm [3.25 × 0.24] – bolt circle Ø 106.4 mm [4.19] ; hole Ø 13.6 mm [0.53]
Type code: None
Additional information
| Flange | 82.5mm, 106.4mm, 4 bolts |
|---|---|
| Manufacturer | White |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 100 |
| Shaft | 6 teeth, 34.85mm |
