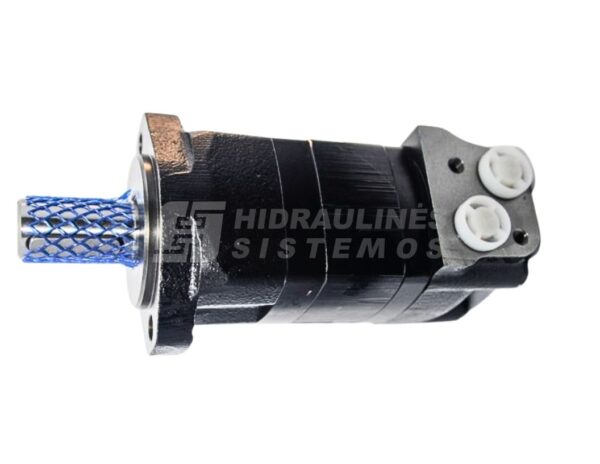

Hydraulic motor MS 100 C 32mm shaft, BM3-100P10
250,00 € excl. VAT
120200001020 BM3-100P10AY/T27 BM3-100 SMS-100
Out of stock
120200001020 BM3-100P10AY/T27 BM3-100 SMS-100
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Specification

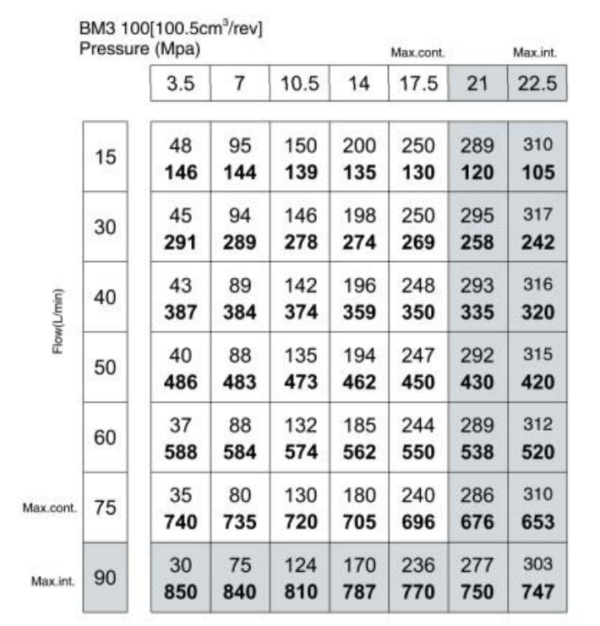

Type: BM3-100 / BM3S-100 / BM3W-100
Displacement: 100.5 cm³/rev
Maximum pressure drop (continuous): 17.5 MPa
Maximum pressure drop (intermittent): 20 MPa
Maximum pressure drop (peak): 22.5 MPa
Maximum torque (continuous): 242 Nm
Maximum torque (intermittent): 283 Nm
Maximum torque (peak): 318 Nm
Speed range (continuous): 10–750 rpm
Maximum flow (continuous): 75 l/min
Maximum output power (continuous): 16 kW
Weight: 10.0 kg
Additional information
| Flange | 82.5mm, 106.4mm, 4 bolts |
|---|---|
| Manufacturer | gopart |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 100 |

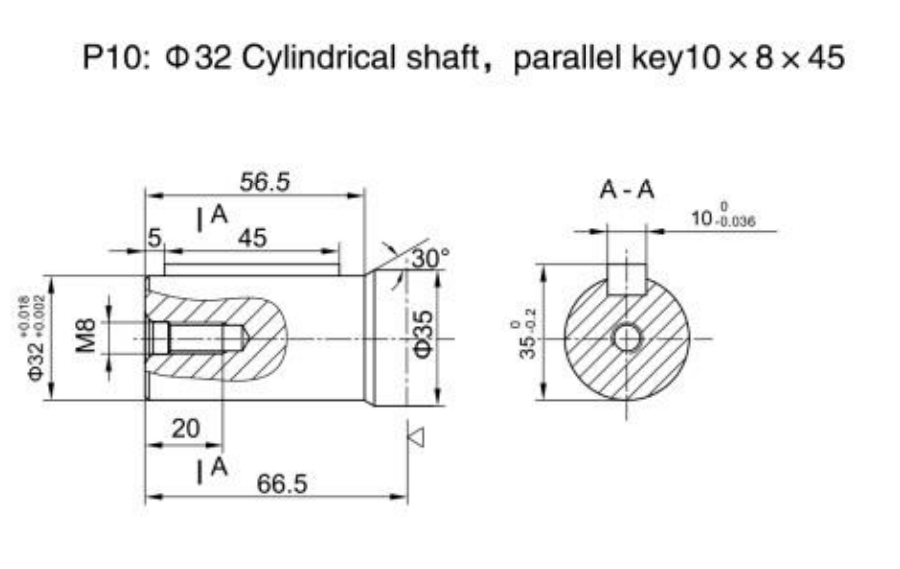

| Shaft | 32mm |
