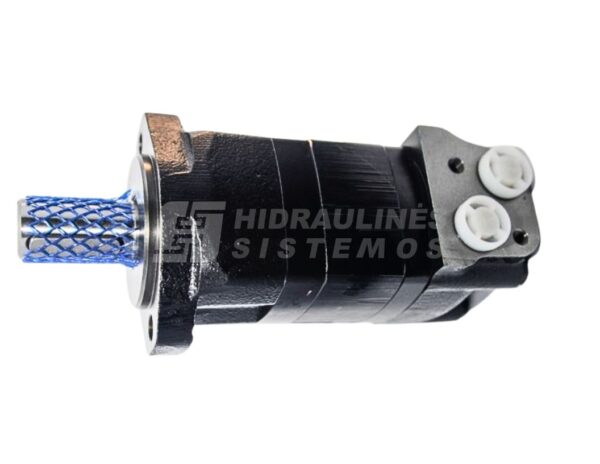

Hydraulic motor MS 100 C 32mm shaft, ALSG3-100-O2-C32-01 Ambr

Original price was: 325,00 €.Current price is: 226,50 €. excl. VAT

EPMS100C ALSG3-100-O2-C32-01

Out of stock

EPMS100C ALSG3-100-O2-C32-01

Enter your email address and we will notify you as soon as the item is available.

SKU: HMS100 Category: MS - type OMS BMS MC2 2000-series

Free delivery

for orders from €100

Product returns

within 30 business days

Fast pickup

in store

Have questions? Didn’t find the product?

Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.

Specifications

Specification

Type: ALSG3 100

Displacement: 100.8 cm³/rev

Maximum speed (continuous): 748 rpm

Maximum speed (intermittent): 900 rpm

Maximum torque (continuous): 290 Nm

Maximum torque (intermittent): 320 Nm

Maximum output power (continuous): 18 kW

Maximum output power (intermittent): 22 kW

Maximum pressure drop (continuous): 20.5 MPa

Maximum pressure drop (intermittent): 22.5 MPa

Maximum pressure drop (peak): 29.5 MPa

Maximum flow (continuous): 75 l/min

Maximum flow (intermittent): 90 l/min

Maximum inlet pressure (continuous): 25 l/min

Maximum inlet pressure (intermittent): 30 l/min

Weight: 10.0 kg
