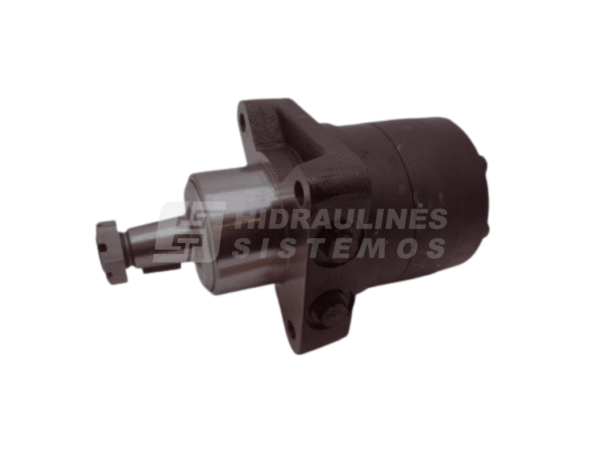

Eaton Char-Lynn hydraulic motor 184-0153-002 MDL143AA02AC0E4000000AB00B
600,00 € excl. VAT
8103 82253 DELTA MOTOR LG 184-0153-002
Out of stock
8103 82253 DELTA MOTOR LG 184-0153-002
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Model Code |
MDL143AA02AC0E4000000AB00B
|
|
| Motor Series |
Delta Series
|
|
| Valve system |
Disc valve on the output shaft
|
|
| Orbital gearwheel set type |
Geroler
|
|
| Motor size |
235
|
|
| Geometric displacement [cm3/r [in3/r]] |
234 [14.3]
|
|
| Motor type |
Wheel
|
|
| Motor function |
Standard
|
|
| Mounting flange type |
4 Bolt – Wheel
|
|
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] |
82.6 x 6.4, 147.6, 13.6 [3.25 x 0.25, 5.81, 0.54] Rear: 127.0 x 13.9, 147.6, 13.6 [5.00 x 0.55, 5.81, 0.55]
|
|
| Shaft dimension |
Dia. 1 1/4 inch, 1:8 SAE J501, 1 – 20 UNEF-2A thread in shaft end
|
|
| Shaft Key |
Square key, 5/16 x 1 inch
|
|
| Main port thread type |
BSP
|
|
| Main port style |
Sideport – aligned
|
|
| Main port dimension |
G 1/2
|
|
| Drain Port Dimension |
None
|
|
| Brake Release Port Dimension |
n/a
|
|
| Painted |
Yes
|
|
| Paint information |
Primer, Black, Low gloss
|
|
| Special Features Assembly |
Standard
|
|
| Dust seal |
Seal Guard
|
|
| Shaft Seal |
NBR – Standard
|
|
| Seal Kit |
No data available
|
Additional information
| Flange | 82.5mm, 147.6mm, 4 bolts |
|---|---|
| Manufacturer | Eaton Char-Lynn |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 234 |
| Shaft | Tapered 31.75mm-1’1/4” |
