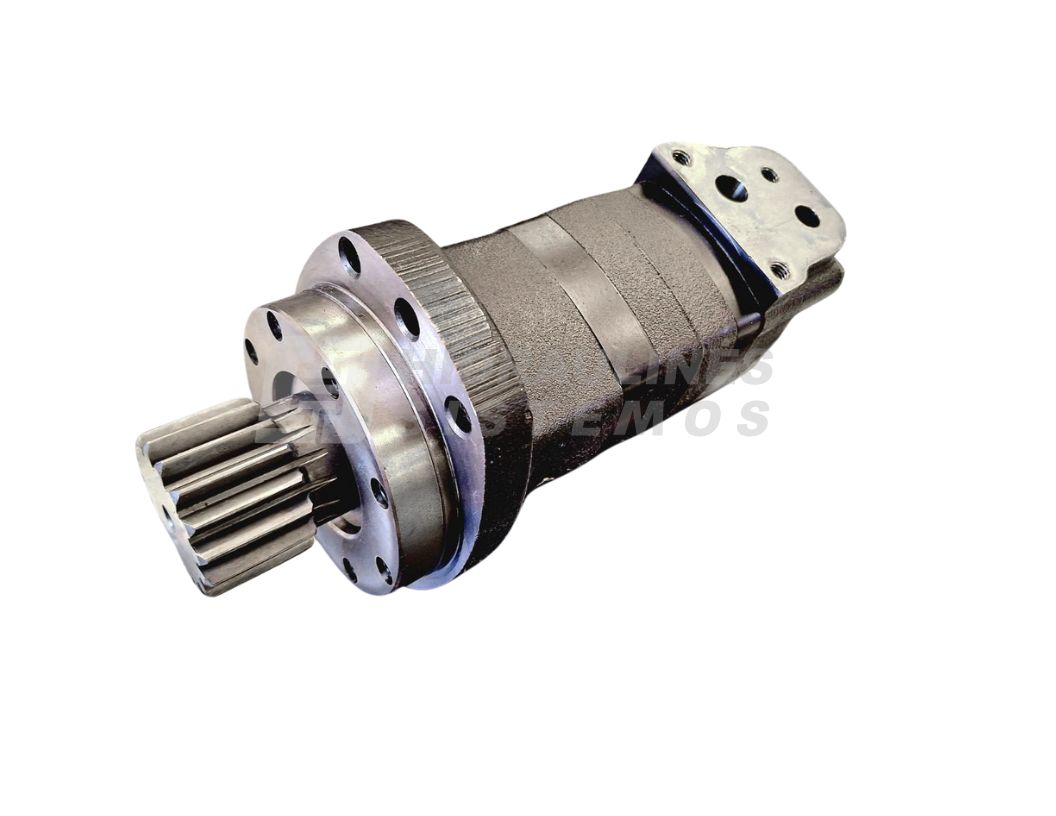

Eaton Char-Lynn hydraulic motor 104-1812-006
1500,00 € excl. VAT
BOBCAT 220 104-1812-006 / 144-1003-006, 6659533-A, 6669539, 104-1812, 144-1003, 1451003-001
1 in stock
BOBCAT 220 104-1812-006 / 144-1003-006, 6659533-A, 6669539, 104-1812, 144-1003, 1451003-001
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Model Code |
M02149AA30AB0700030000300ABAAF
|
|
| Motor Series |
2000 Series
|
|
| Valve system |
Disc valve with valve drive
|
|
| Orbital gearwheel set type |
Geroler
|
|
| Motor size |
245
|
|
| Geometric displacement [cm3/r [in3/r]] |
244.3 [14.91]
|
|
| Motor type |
Standard
|
|
| Motor function |
Standard
|
|
| Mounting flange type |
No data available
|
|
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] |
110.0 x 5.2, 137.0, 11.0 [4.33 x 0.21, 5.39, 0.43]
|
|
| Shaft type |
Pinion
|
|
| Shaft dimension |
Dia. 57 mm, 16T JIS B1701
|
|
| Shaft Key |
n/a
|
|
| Main port thread type |
Manifold
|
|
| Main port style |
Sideport – staggered
|
|
| Main port dimension |
Port A: 0.500 inch & Port B: 0.625 inch drilled hole, 3 x 3/8 – 16 UNC-2B block mounting threads
|
|
| Drain Port Dimension |
7/16 – 20 UNF-2B SAE O-Ring port & 2 x 9/16 – 18 UNF-2B SAE O-Ring port – Spec. Component
|
|
| Brake Release Port Dimension |
n/a
|
|
| Painted |
Yes
|
|
| Paint information |
Primer, Black, Low gloss
|
|
| Special Features Assembly |
Standard
|
|
| Dust seal |
Standard
|
|
| Shaft Seal |
NBR – Standard
|
|
| Seal Kit |
9900664-000
|
Additional information
| Manufacturer | Eaton Char-Lynn |
|---|---|
| Connections | BSP 1/2” |
| Connection side/rear | Šonas |
| Type | Orbitinis (Gerotorinis) |
| Volume | 244 |
| Shaft | 16 dantų, 57mm |
