Eaton Char-Lynn hydraulic motor 104-1608-006 M02187AJ02AD0100010000000AAAAF
950,00 € excl. VAT
104-1608-006 M02187AJ02AD0100010000000AAAAF
2 in stock
104-1608-006 M02187AJ02AD0100010000000AAAAF
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Model Code |
M02187AJ02AD0100010000000AAAAF
|
|
| Motor Series |
2000 Series
|
|
| Valve system |
Disc valve with valve drive
|
|
| Orbital gearwheel set type |
Geroler
|
|
| Motor size |
305
|
|
| Geometric displacement [cm3/r [in3/r]] |
306.6 [18.71]
|
|
| Motor type |
Standard
|
|
| Motor function |
Standard
|
|

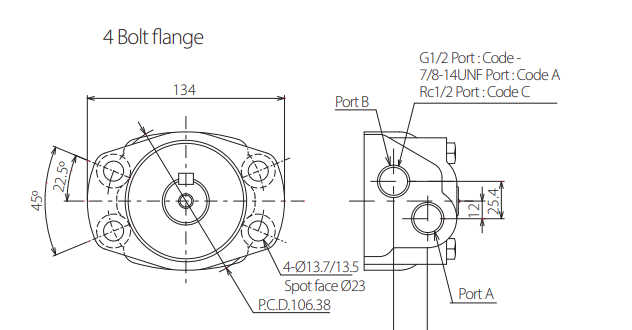

| Mounting flange type |
4 Bolt – Magneto
|
|
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] |
82.6 x 2.8, 106.4, 13.6 [3.25 x 0.11, 4.19, 0.54]
|
|

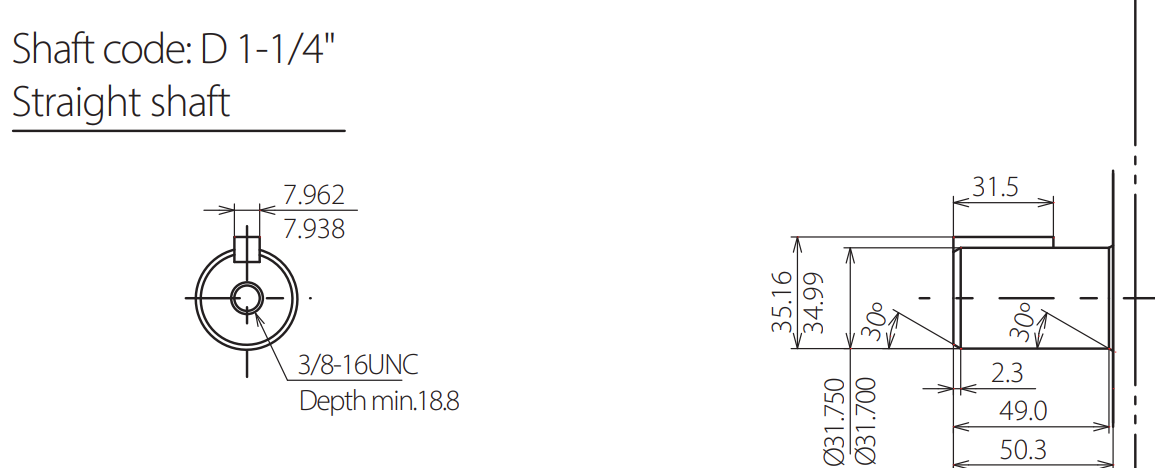

| Shaft type |
Straight
|
|
| Shaft dimension |
Dia. 1 1/4 inch, 3/8 – 16 UNC-2B thread in shaft end
|
|
| Shaft Key |
Square key, 5/16 x 5/16 x 1 1/4 inch
|
|
| Main port thread type |
UN / UNF
|
|
| Main port style |
Endport – aligned
|
|
| Main port dimension |
7/8 – 14 UNF-2B SAE O-Ring port
|
|
| Drain Port Dimension |
7/16 – 20 UNF-2B SAE O-Ring port
|
|
| Brake Release Port Dimension |
n/a
|
|
| Painted |
No
|
|
| Paint information |
n/a
|
|
| Special Features Assembly |
Standard
|
|
| Dust seal |
Standard
|
|
| Shaft Seal |
NBR – Standard
|
|
| Seal Kit |
61258-000
|
Additional information
| Connections | 7/8”-14 UNF |
|---|---|
| Connection side/rear | Šonas |
| Shaft | 31.75mm-1’1/4” |
