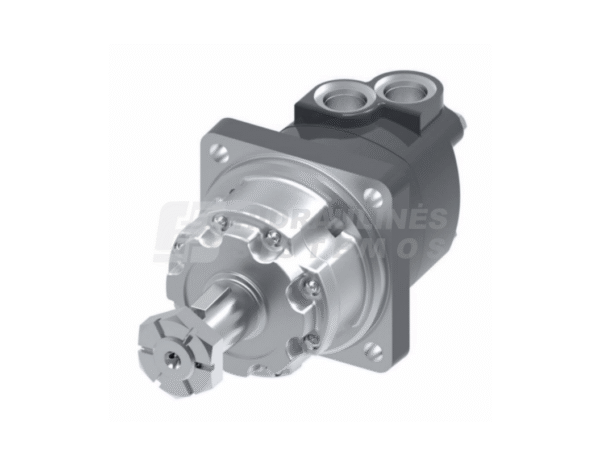

Eaton Char-Lynn hydraulic motor 112-1526-006 M06239AB01AA0200000AF00000000F
950,00 € excl. VAT
110-1135-006 M04204AC02AC0300000000600AA00F
Out of stock
110-1135-006 M04204AC02AC0300000000600AA00F
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Model Code |
M04240AC02AC0300000000600AA00F
|
|
| Motor Series |
4000 Series
|
|
| Valve system |
Disc valve with valve drive
|
|
| Orbital gearwheel set type |
Geroler
|
|
| Motor size |
395
|
|
| Geometric displacement [cm3/r [in3/r]] |
393.9 [24.04]
|
|
| Motor type |
Wheel
|
|
| Motor function |
Standard
|
|
| Mounting flange type |
4 Bolt – Wheel
|
|
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] |
139.7 x 9.1, 165.1, 14.3 [5.50 x 0.36, 6.50, 0.56]
|
|
| Shaft dimension |
Dia. 1 5/8 inch, 1:8, 1 1/4 – 18 UNEF-2A thread in shaft end
|
|
| Shaft Key |
Square key, 7/16 x 1 1/4 inch
|
|
| Main port thread type |
BSP
|
|
| Main port style |
Sideport – staggered
|
|
| Main port dimension |
G 3/4
|
|
| Drain Port Dimension |
G 1/4
|
|
| Brake Release Port Dimension |
n/a
|
|
| Painted |
Yes
|
|
| Paint information |
Primer, Black, Low gloss
|
|
| Special Features Assembly |
Standard
|
|
| Dust seal |
Standard
|
|
| Shaft Seal |
NBR – Standard
|
|
| Seal Kit |
61232-000
|
Additional information
| Flange | For wheels 139mm, 165mm, 4 bolts |
|---|---|
| Manufacturer | Eaton Char-Lynn |
| Connections | BSP 3/4” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 394 |
| Shaft | Tapered 41.28mm 1’5/8 |
