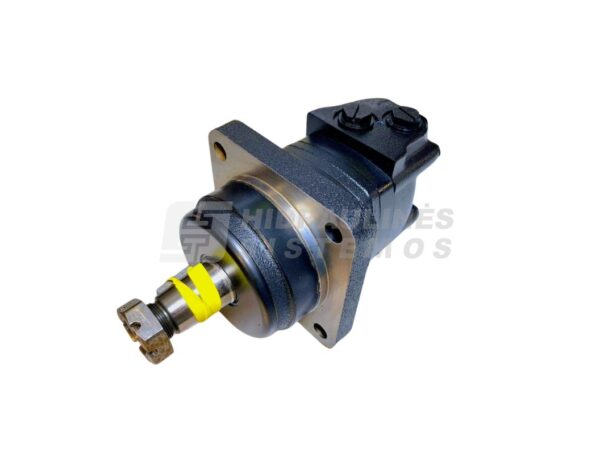

Eaton Char-Lynn hydraulic motor 105-1376-006 M02049AB03AA0100010000000ABAAF

Description

Specification

Model code: M02049AB03AA0100010000000ABAAF

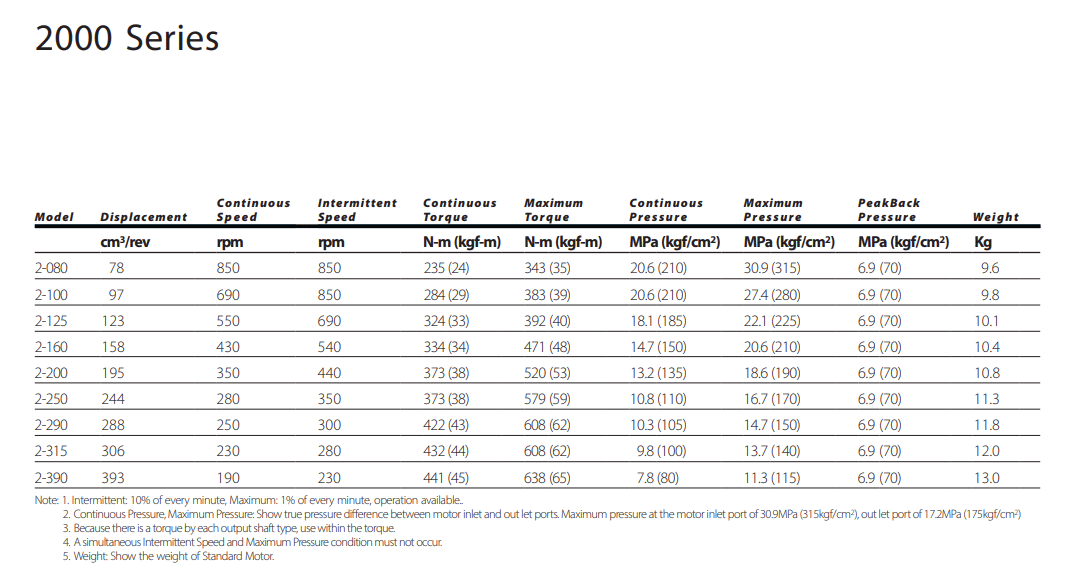

Motor series: 2000 Series

Valve system: Disc valve with valve drive

Orbital gearwheel set type: Geroler

Motor size: 80

Geometric displacement: 80.6 cm³/rev [4.92 in³/rev]

Motor type: Wheel motor

Motor function: Standard

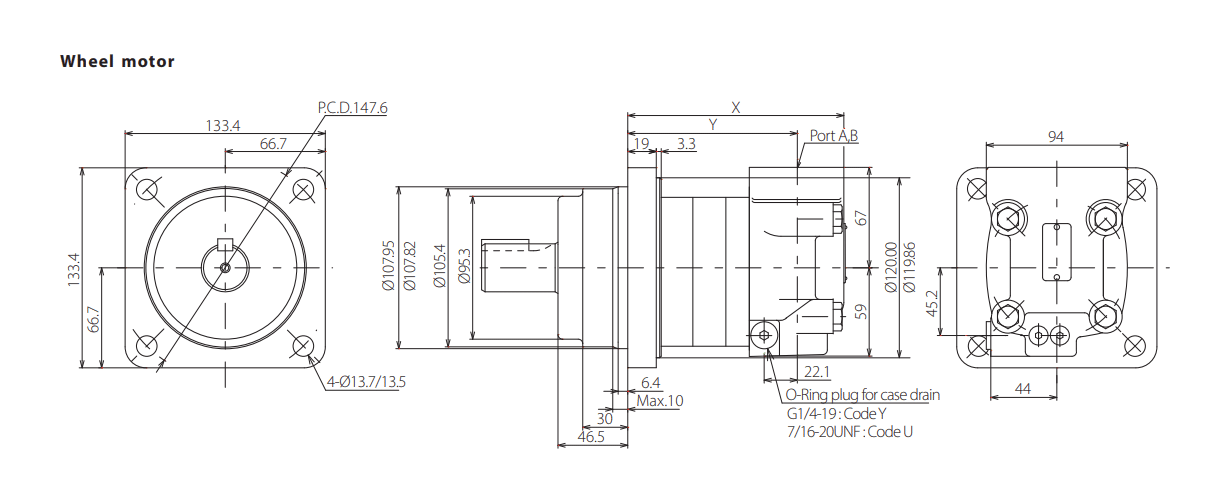

Mounting flange type: 4 bolt – wheel

Mounting flange dimensions (pilot dia × height, bolt circle dia, hole dia):

• 108.0 × 6.4 mm, 147.6 mm, 13.6 mm [4.25 × 0.25″, 5.81″, 0.54″]

• Rear: 127.0 × 3.3 mm, 147.6 mm, 13.6 mm [5.00 × 0.13″, 5.81″, 0.54″]

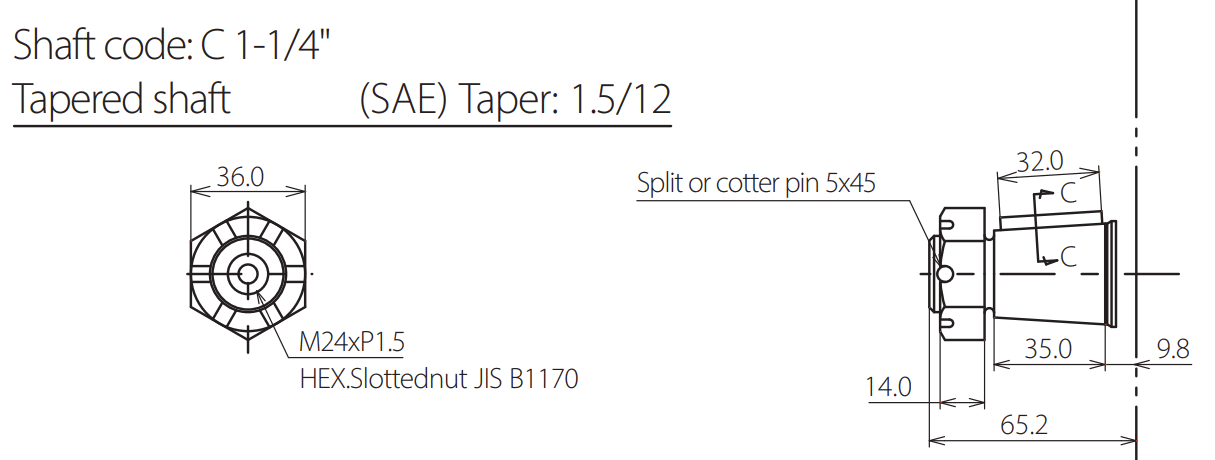

Shaft type: Tapered

Shaft dimensions: Ø 1 1/4″, taper 1:8 SAE J501, 1-20 UNEF-2A thread in shaft end

Shaft key: Square key, 5/16 × 1″

Main port thread type: UN / UNF

Main port style: Side port – staggered

Main port dimension: 7/8-14 UNF-2B SAE O-Ring port

Drain port dimension: 7/16-20 UNF-2B SAE O-Ring port

Brake release port: n/a

Painted: Yes

Paint information: Primer, black, low gloss

Special features assembly: Standard

Dust seal: Standard

Shaft seal: NBR – standard

Seal kit: 61258-000

Front bearing type: Tapered roller bearing

Rear bearing type: Tapered roller bearing

Orbital gearwheel set: Standard

Check valve function: Yes

Hydraulic valve function: None

Sensor: None

Packaging: Single pack

Name tag: Danfoss

Design code: 06

Brand: DANFOSS

Sub-brand: Char-Lynn

Height: 134.112 mm

Length: 177.038 mm

Width: 134.112 mm
