Eaton Char-Lynn hydraulic motor 104-1842-006 M02096AJ04AD01000100000AAAAAAF
810,00 € excl. VAT
104-1842-006 M02096AJ04AD01000100000AAAAAAF
Out of stock
104-1842-006 M02096AJ04AD01000100000AAAAAAF
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
|
Characteristic
|
Value
|
Description
|
|---|---|---|
| Model Code |
M02096AJ04AD01000100000AAAAAAF
|
|

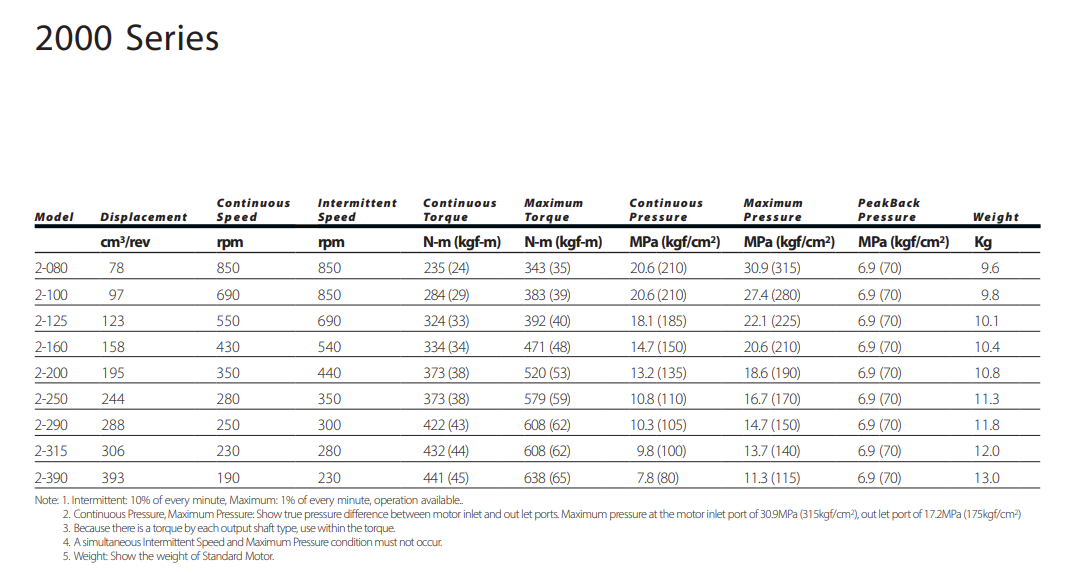

| Motor Series |
2000 Series
|
|
| Valve system |
Disc valve with valve drive
|
|
| Orbital gearwheel set type |
Geroler
|
|
| Motor size |
160
|
|
| Geometric displacement [cm3/r [in3/r]] |
158.1 [9.65]
|
|
| Motor type |
Standard
|
|
| Motor function |
Standard
|
|

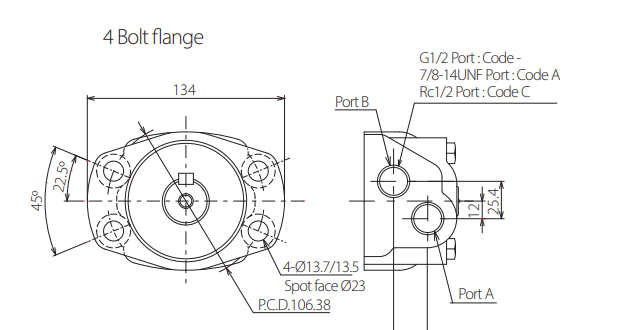

| Mounting flange type |
4 Bolt – Magneto
|
|
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] |
82.6 x 2.8, 106.4, 13.6 [3.25 x 0.11, 4.19, 0.54]
|
|
| Shaft type |
Splined
|
|
| Shaft dimension |
Dia. 1 1/4 inch, 14T, 3/8 – 16 UNC-2B thread in shaft end
|
|
| Shaft Key |
n/a
|
|
| Main port thread type |
UN / UNF
|
|
| Main port style |
Endport – aligned
|
|
| Main port dimension |
7/8 – 14 UNF-2B SAE O-Ring port
|
|
| Drain Port Dimension |
7/16 – 20 UNF-2B SAE O-Ring port
|
|
| Brake Release Port Dimension |
n/a
|
|
| Painted |
No
|
|
| Paint information |
n/a
|
|
| Special Features Assembly |
Turned component
|
|
| Dust seal |
Standard
|
|
| Shaft Seal |
NBR – Standard
|
|
| Seal Kit |
61258-000
|
Additional information
| Flange | 82.5mm, 106.4mm, 4 bolts |
|---|---|
| Manufacturer | Eaton Char-Lynn |
| Connections | 7/8”-14 UNF |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 158 |
| Shaft | 14 teeth, 31.75mm-1’1/4” |
