Eaton Char-Lynn hydraulic motor 104-1228-006 M02240AC02AA0100010000000AAAAF

Description

Specification

Model code: M02240AC02AA0100010000000AAAAF

Motor series: 2000 Series

Valve system: Disc valve with valve drive

Orbital gearwheel set type: Geroler

Motor size: 395

Geometric displacement: 393.8 cm³/rev (24.03 in³/rev)

Motor type: Standard

Motor function: Standard

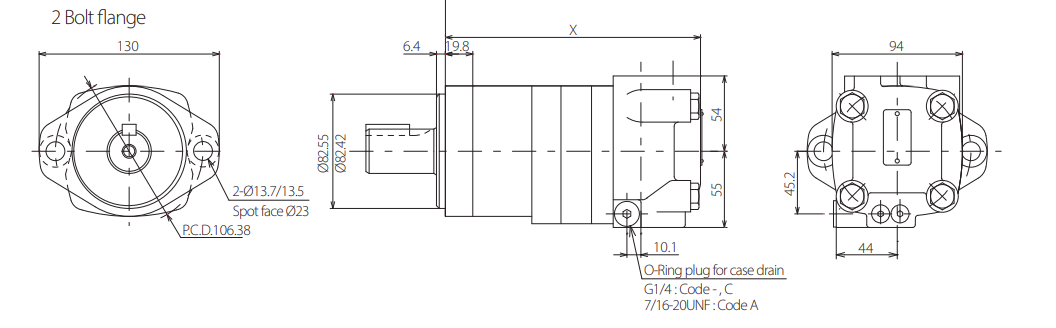

Mounting flange type: 2-bolt – A (SAE A)

Mounting flange dimensions (pilot dia × height, bolt circle dia, hole):

82.6 × 6.4 mm, 106.4 mm, 13.6 mm

Shaft type: Straight

Shaft dimensions: Ø 1 1/4 inch, 3/8–16 UNC-2B thread in shaft end

Shaft key: Square key 5/16 × 5/16 × 1 1/4 inch

Main port thread type: UN / UNF

Main port style: Side ported – staggered

Main port dimension: 7/8–14 UNF-2B SAE O-Ring port

Drain port dimension: 7/16–20 UNF-2B SAE O-Ring port

Brake release port: n/a

Painted: No

Special features assembly: Standard

Dust seal: Standard

Shaft seal: NBR – standard

Seal kit: 61258-000

Front bearing type: Tapered roller bearing

Rear bearing type: Tapered roller bearing

Check valve function: Yes

Hydraulic valve function: None

Sensor: None

Packaging: Single pack

Name tag: Danfoss

Design code: 06

Brand: DANFOSS

Sub-brand: CHAR-LYNN

Product dimensions:

Height: 176.784 mm

Length: 291.846 mm

Width: 131.064 mm
