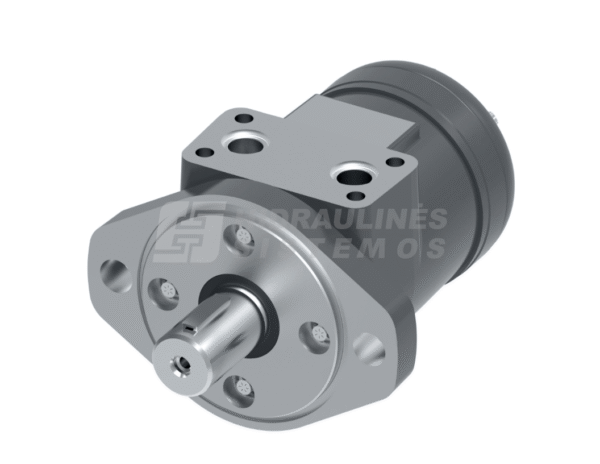

Siurbliai hidrovarikliai nestandartiniai
306,60 € excl. VAT
Out of stock
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
|
Characteristic
|
Value
|
|---|---|
| Brand |
Danfoss
|
| Check valve function |
No
|
| Design code |
09
|
| Drain Port Dimension |
G 1/4
|
| Dust seal |
Standard
|
| Feature |
Compact yet powerful, Extended bearing life, Increased shaft seal
|
| Front bearing type |
Journal bearing
|
| Geometric displacement [cm3/r [in3/r]] |
96 [5.9]
|
| Hydraulic valve function |
None
|
| Main port dimension |
0.500 inch drilled hole, 4 x M8 x 1.25-6H mounting threads
|
| Main port style |
Sideport – aligned
|
| Main port thread type |
Manifold
|
| Model Code |
MH0059AA24AD0200000000000AA00J
|
| Model Code |
MH0059AA24AD0200000000000AA00J
|
| Motor function |
Standard
|
| Motor Series |
H Series
|
| Motor size |
95
|
| Motor type |
Standard
|
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] |
82.5 x 3.1, 106.4, 13.6 [3.25 x 0.12, 4.19, 0.54]
|
| Mounting flange type |
2 Bolt – A
|
Additional information
| Flange | 82.5mm 106.4mm, 2 varžtai |
|---|---|
| Manufacturer | Eaton Char-Lynn |
| Connections | BSP 1/2” |
| Connection side/rear | Šonas |
| Type | Orbitinis (Gerotorinis) |
| Volume | 96 |
| Shaft | 25mm |
