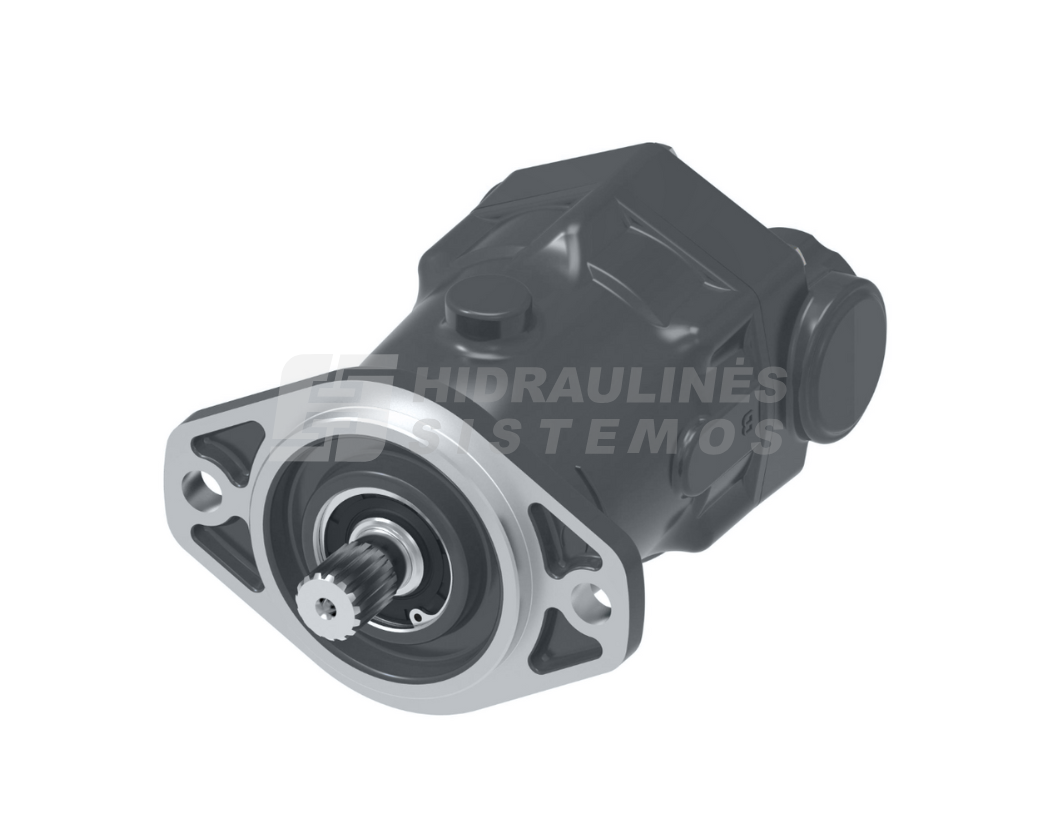

Siurbliai hidrovarikliai nestandartiniai
620,00 € excl. VAT
Out of stock
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Displacement: 40.6 cubic centimetre per revolution
Eccn: EAR99
Flow rate12: 175.71 litre per minute
Icc2: HS MP Fixed Axial-Piston Motors
Identification: Standard
Main ports: 1.3125-12 UN-2B SAE O-Ring Ports – Top
Maximum displacement: 40.6 cubic centimetre per revolution
Maximum speed: 3600 revolutions per minute
Model Code: AAJADDA00000A0B
Mounting flange: SAE 2 Bolt B
Mounting Type: SAE B 2 Bolt
Output shaft: Straight Shaft, Diameter 28.58 [1.125], Keyway 7.9 X 32.5 [.31 X 1.28], Shaft Extension 46 [1.81]
Additional information
| Flange | 101.6mm, 146.1mm, 2 varžtai |
|---|---|
| Manufacturer | Eaton Char-Lynn |
| Connections | 1’5/16”-12 UNF |
| Connection side/rear | Galas |
| Type | Orbitinis (Gerotorinis) |
| Volume | 41 |
| Shaft | 28.58mm |
