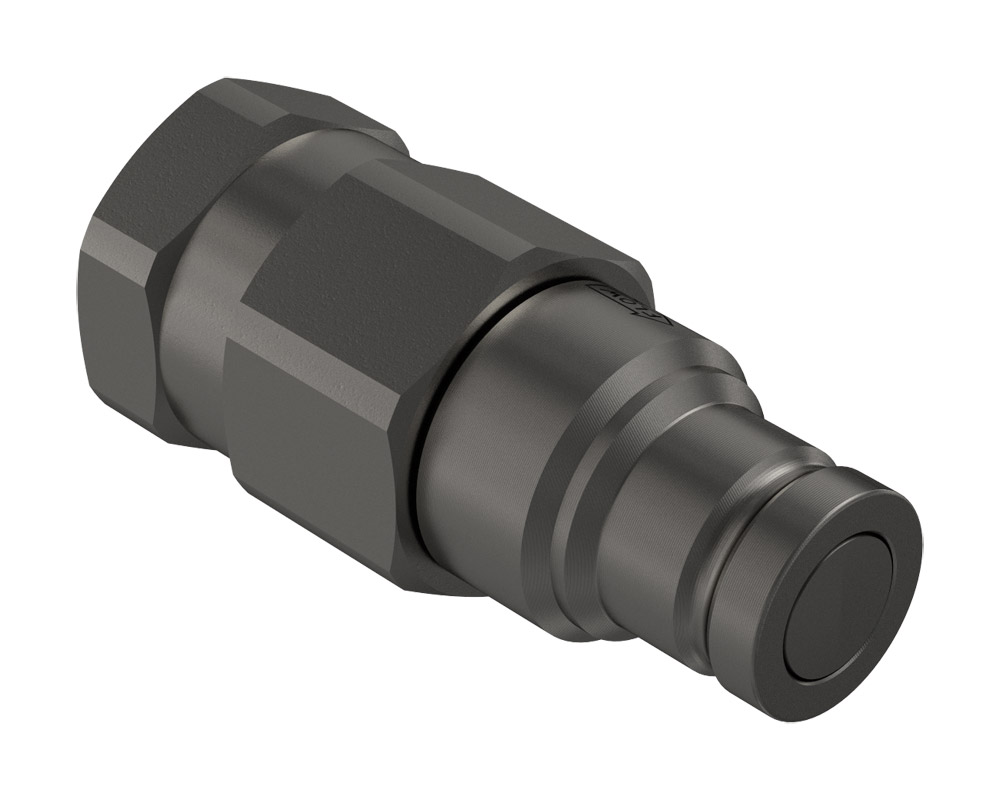

Quick coupling 12 M UNF 1'1/16-female, Flat face 350bar, seria FASTER
Quick coupling 12 M UNF 1'1/16-female, Flat face 350bar, seria FASTER
Add to wishlist

Quick coupling 12 M UNF 1’1/16-female, Flat face 350bar, seria FASTER

Full product specification

81,36 € excl. VAT

FFH1234SAEM, FFH12 34SAE M

1 in stock

FFH1234SAEM, FFH12 34SAE M

SKU: 160439 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

FFH series flat face quick coupling plug designed for hydraulic systems. The flat-face valve design helps minimise fluid spillage during disconnection and reduces the ingress of contaminants into the hydraulic circuit during connection.

The coupling is interchangeable according to ISO 16028. It has a nominal body size of 3/4″ and a 1-1/16″-12 UN female SAE ORB connection according to ISO 11926-1. The rated flow is 160 l/min at 0.2 MPa pressure drop, with a maximum working pressure of 350 bar.

Technical Data

  • Manufacturer: FASTER
  • Part number: FFH12 34SAE M / FFH1234SAEM
  • Series: FFH
  • Type: Flat face quick coupling plug
  • Interchange: ISO 16028
  • Nominal size: 3/4″
  • Connection: Female SAE ORB
  • Thread: 1-1/16″-12 UN
  • Maximum working pressure: 350 bar
  • Rated flow: 160 l/min at Δp 0.2 MPa
  • Seals: NBR and PUR
  • Operating temperature: –25 to +100 °C
  • Length: 101.6 mm
