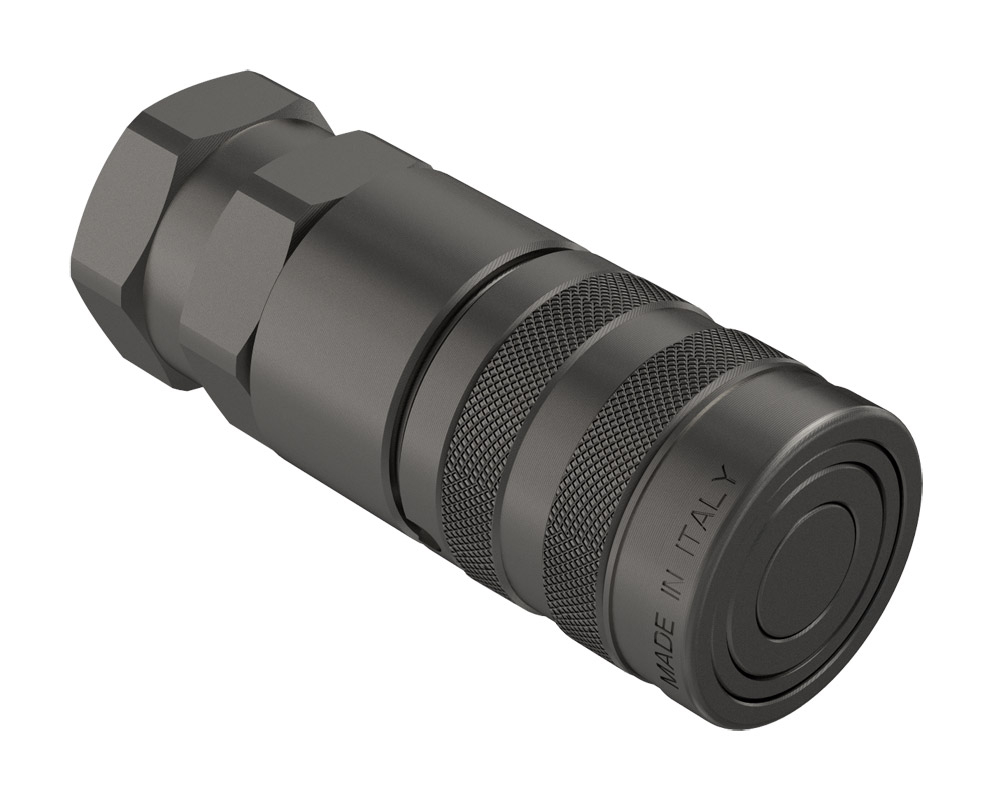

Quick coupling 12 F UNF 1’1/16-female, Flat face 350 bar, seria FASTER

Full product specification

105,00 € excl. VAT

FFH1234SAEF, FFH12 34SAE F

1 in stock

FFH1234SAEF, FFH12 34SAE F

SKU: 160440 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

FFH series flat face quick coupling socket designed for hydraulic systems. The flat-face design minimises fluid spillage during disconnection and helps reduce contamination entering the hydraulic circuit during connection.

The coupling is interchangeable according to ISO 16028. It has a nominal body size of 3/4″ and a 1-1/16″-12 UN female SAE ORB connection. Rated flow is 160 l/min at 0.2 MPa pressure drop, with a maximum working pressure of 350 bar.

Technical Data

  • Manufacturer: FASTER
  • Part number: FFH12 34SAE F / FFH1234SAEF
  • Series: FFH
  • Type: Flat face quick coupling socket
  • Interchange: ISO 16028
  • Nominal size: 3/4″
  • Connection: Female SAE ORB
  • Thread: 1-1/16″-12 UN
  • Rated flow: 160 l/min at Δp 0.2 MPa
  • Maximum working pressure: 350 bar
  • Seals: NBR and polyurethane
  • Operating temperature: –25 to +100 °C
  • Body material: Steel
  • Overall length: 104.3 mm
