Hydraulic motor MS 125 C 32mm shaft, ALSG3-125-R4-C32-01 Ambr

245,00 € excl. VAT

ALSG3-125-R4-C32-01 21003345

Out of stock

ALSG3-125-R4-C32-01 21003345

Enter your email address and we will notify you as soon as the item is available.

SKU: HMS125R Category: MS - type OMS BMS MC2 2000-series

Free delivery

for orders from €100

Product returns

within 30 business days

Fast pickup

in store

Have questions? Didn’t find the product?

Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.

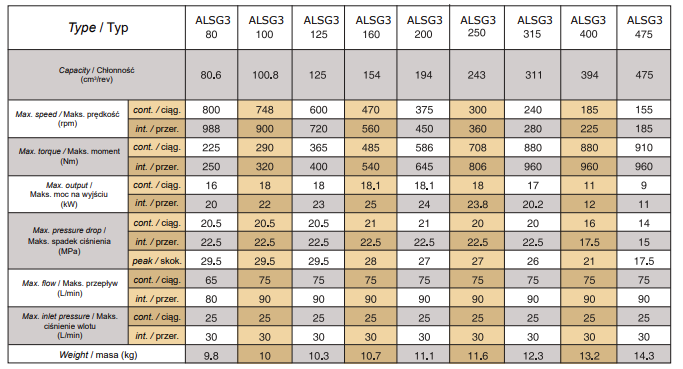

Specifications

Specification

Type: ALSG3 125

Displacement: 125 cm³/rev

Maximum speed (continuous): 600 rpm

Maximum speed (intermittent): 720 rpm

Maximum torque (continuous): 365 Nm

Maximum torque (intermittent): 400 Nm

Maximum output power (continuous): 18 kW

Maximum output power (intermittent): 23 kW

Maximum pressure drop (continuous): 20.5 MPa

Maximum pressure drop (intermittent): 22.5 MPa

Maximum pressure drop (peak): 29.5 MPa

Maximum oil flow (continuous): 75 l/min

Maximum oil flow (intermittent): 90 l/min

Maximum inlet pressure (continuous): 25 l/min

Maximum inlet pressure (intermittent): 30 l/min

Weight: 10.3 kg
