Hydraulic motor MS 080 C 32mm shaft, ALSG3-80-R4-C32-01 Ambr
Original price was: 245,00 €.225,40 €Current price is: 225,40 €. excl. VAT
EPMS080 ALSG3-80-R4-C32-01 21003343
Out of stock
EPMS080 ALSG3-80-R4-C32-01 21003343
Product information
Description
Specification
Type: ALSG3 80
Displacement: 80.6 cm³/rev
Maximum speed (continuous): 800 rpm
Maximum speed (intermittent): 988 rpm
Maximum torque (continuous): 225 Nm
Maximum torque (intermittent): 250 Nm
Maximum output power (continuous): 16 kW
Maximum output power (intermittent): 20 kW
Maximum pressure drop (continuous): 20.5 MPa
Maximum pressure drop (peak): 29.5 MPa
Maximum oil flow (continuous): 65 l/min
Maximum oil flow (intermittent): 80 l/min
Maximum inlet flow (continuous): 25 l/min
Maximum inlet flow (intermittent): 30 l/min
Weight: 9.8 kg
Additional information

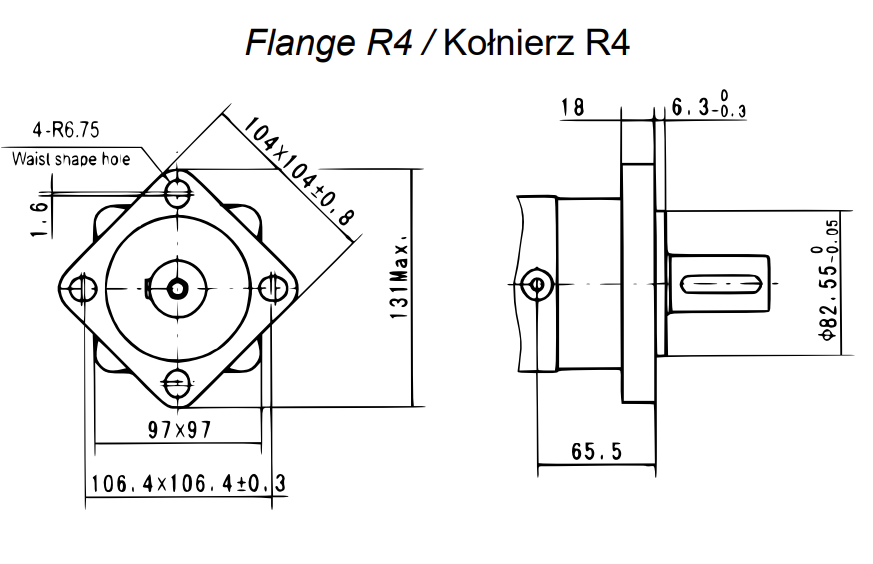

| Flange | 82.5mm, 106.4mm, 4 bolts |
|---|---|
| Manufacturer | Amberline Hydraulics |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 80 |
| Shaft | 32mm |
