Hydraulic motor MRB 160 C/C with dual shafts 25 mm, LSVPC
340,00 € excl. VAT
MRB160CCLSVPC MRB160 C/C
Out of stock
MRB160CCLSVPC MRB160 C/C
Product information
Description
Specification
Type: MRB 160 C/C
Displacement: 159.6 cm³/rev (9.74 in³/rev)
Maximum speed (continuous): 375 rpm
Maximum speed (intermittent): 470 rpm
Maximum torque (continuous): 30 daNm (2655 lb-in)
Maximum torque (intermittent): 39 daNm (3450 lb-in)
Maximum torque shaft A (continuous): 20 daNm (1770 lb-in)
Maximum torque shaft A (intermittent): 23 daNm (2035 lb-in)
Maximum torque shaft B (continuous): 20 daNm (1770 lb-in)
Maximum torque shaft B (intermittent): 23 daNm (2035 lb-in)
Maximum output power (continuous): 10 kW (13.4 HP)
Maximum output power (intermittent): 12.5 kW (16.8 HP)
Maximum pressure drop (continuous): 110 bar (1600 PSI)
Maximum pressure drop (intermittent): 140 bar (2030 PSI)
Maximum oil flow (continuous): 60 l/min (15.9 GPM)
Maximum oil flow (intermittent): 75 l/min (18.5 GPM)
Maximum return pressure without drain line (0–100 rpm): 75 bar (1090 PSI)
Maximum return pressure without drain line (100–200 rpm): 50 bar (730 PSI)
Maximum return pressure without drain line (200–500 rpm): 20 bar (290 PSI)
Additional information

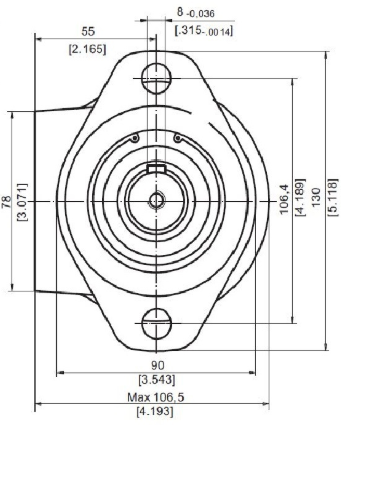

| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 160 |

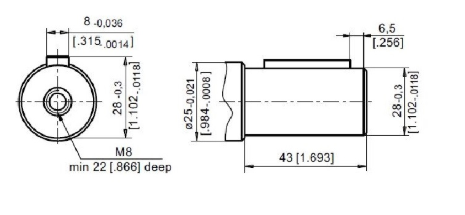

| Shaft | 25mm |
