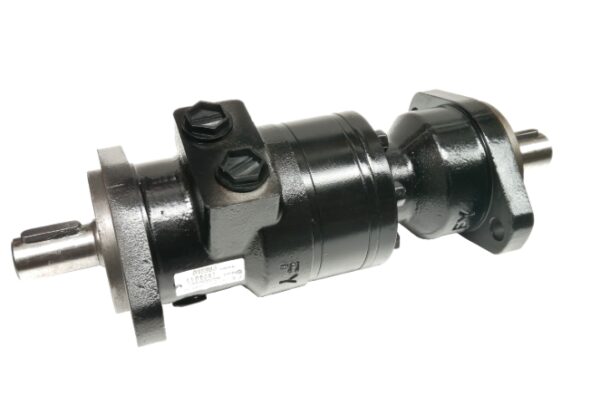

Hydraulic motor MRB 160 C/C with dual shafts 25 mm, BMR2-160
315,00 € excl. VAT
SR160D25X2
2 in stock
SR160D25X2
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Specification
Displacement: 160 cm³/rev
Maximum speed (continuous): 375 rpm
Maximum torque (continuous): 300 Nm
Maximum torque shaft A (continuous): 200 Nm
Maximum torque shaft B (continuous): 200 Nm
Maximum output power: 12.5 kW
Maximum oil flow: 60 l/min
Port A and B: G 1/2″
Port T: G 1/8″
Flange: SAE A
Shaft: Ø 25 mm
Maximum input pressure: 175 bar
Additional information

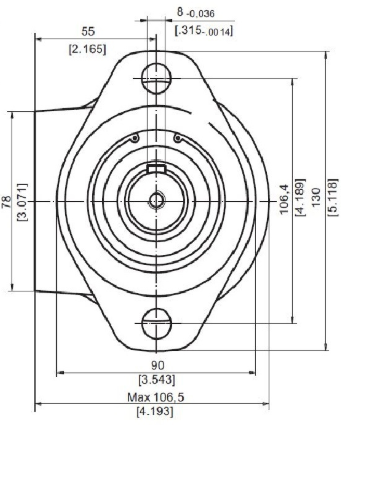

| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | ziHYD |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 160 |
| Shaft | 25mm |
