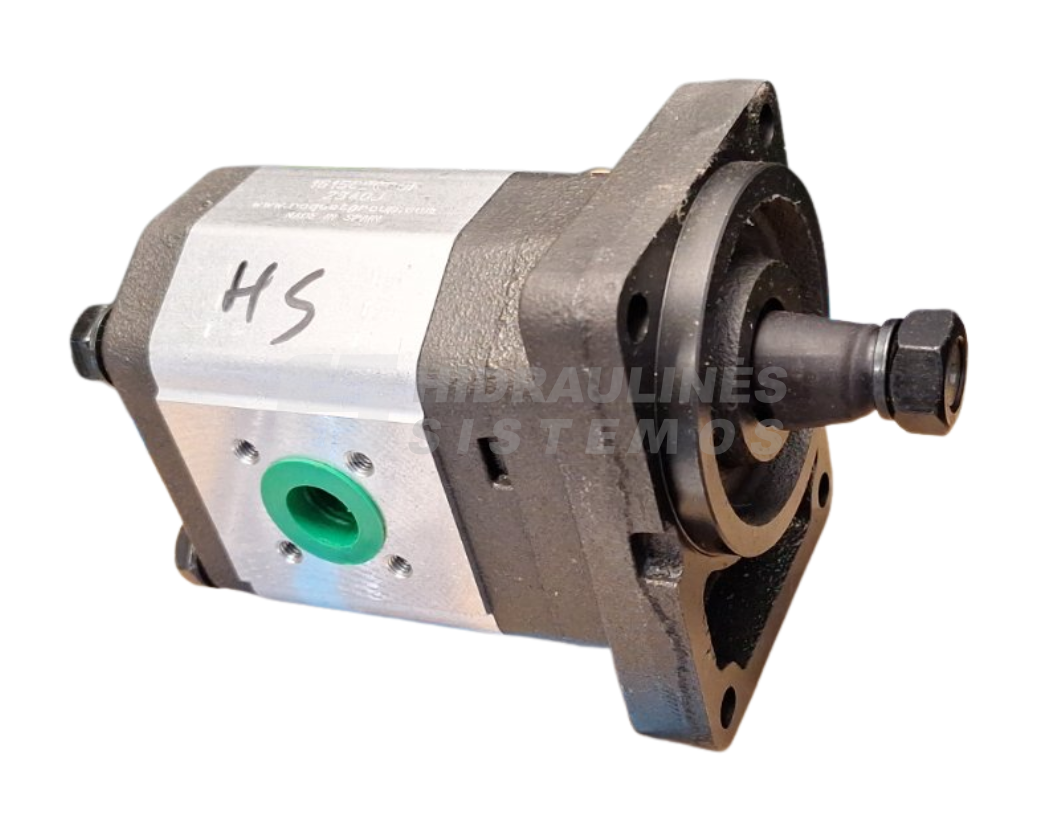

GR2 16.0 cm3/r gear pump D-B80C 1:5(11)-T 5G15CDV23F Roquet
450,00 € excl. VAT
5G15CDV23F 0510645004
Out of stock
5G15CDV23F 0510645004
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

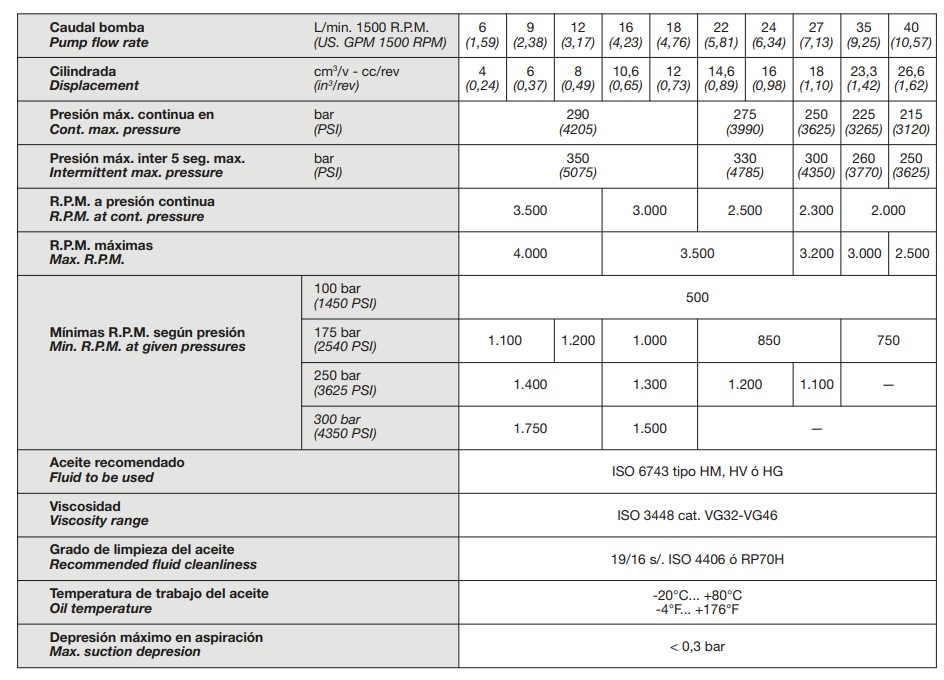

Displacement: 16.0 cm³/rev
Flow rate (at 1500 rpm):
approx. 24 l/min
Max continuous pressure:
up to 250 bar
Max intermittent pressure:
up to 300 bar
Max speed:
up to 3200 rpm
Recommended operating speed:
up to 2500 rpm at working pressure
Minimum speed (depending on pressure):
approx. 850–1200 rpm
Fluid:
hydraulic oil (ISO 6743 HM, HV, HG)
Viscosity range:
ISO VG32 – VG46
Fluid cleanliness:
ISO 4406 19/16
Operating temperature:
from -20 °C to +80 °C
Max suction vacuum:
< 0.3 bar
Additional information
| Group | Group 2 |
|---|---|
| Direction | Right-hand |

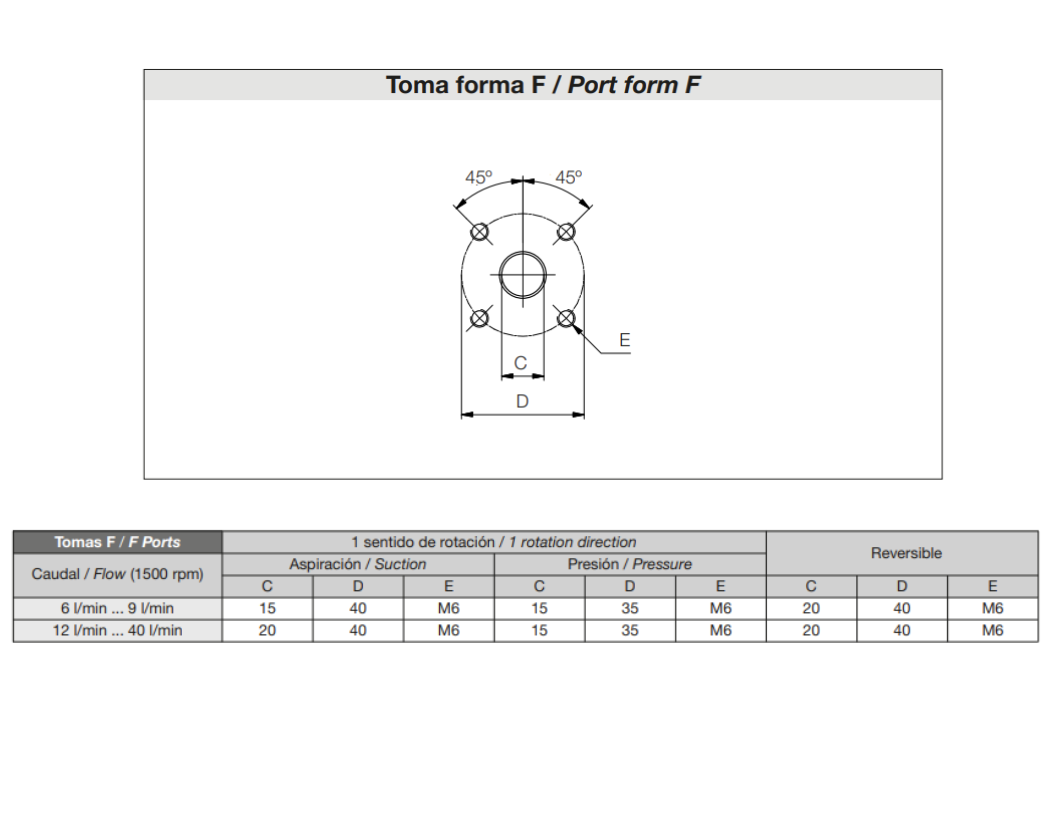

| Inlet | 40mm |
| Outlet | 35mm |
| Connections | Flange German / Bosch |
| Connection side/rear | Side |
| Front cover | B80 Bosch |
| Pressure | 250bar |
| Volume | 16.0 |
| Shaft | 1/5 Group 2 tapered |
| Single / Tandem | Single |
