Eaton Char-Lynn hydraulic motor 112-1166-006 M06150AB02AA0600000000000AD00F
1150,00 € excl. VAT
Out of stock
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Model Code |
M06150AB02AA0600000000000AD00F
|
|
| Motor Series |

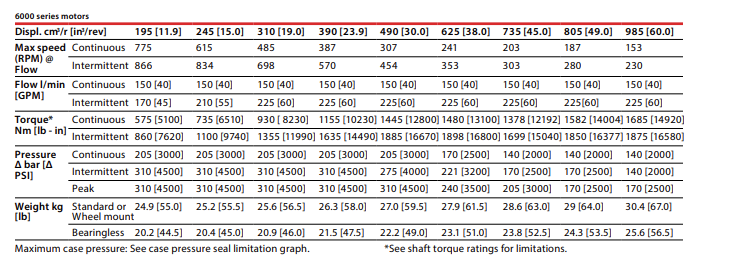

6000 Series
|
|
| Valve system |
Disc valve with valve drive
|
|
| Orbital gearwheel set type |
Geroler
|
|
| Motor size |
245
|
|
| Geometric displacement [cm3/r [in3/r]] |
246.5 [15.04]
|
|
| Motor type |
Standard
|
|
| Motor function |
Standard
|
|
| Mounting flange type |
4 Bolt – Square
|
|

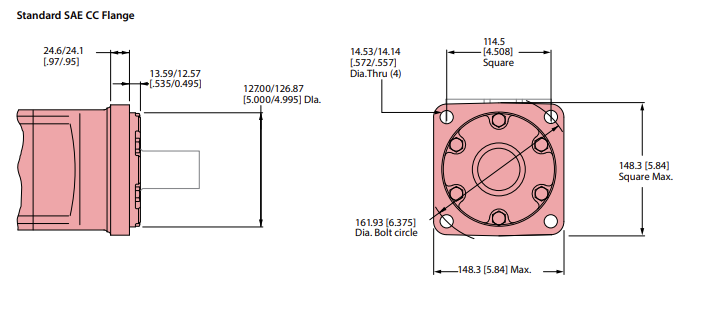

| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] |
127.0 x 12.7, 162.0, 14.4 [5.00 x 0.50, 6.38, 0.57] (SAE CC)
|
|
| Shaft dimension |
Dia. 1 3/4 inch, 1:8 SAE J501, 1 1/4 – 18 UNEF-2A thread in shaft end
|
|
| Shaft Key |
Square key, 7/16 x 1 1/4 inch
|
|
| Main port thread type |
UN / UNF
|
|
| Main port style |
Sideport – staggered
|
|
| Main port dimension |
1 5/16 – 12 UN-2B SAE O-Ring port
|
|
| Drain Port Dimension |
9/16 – 18 UNF-2B SAE O-Ring port
|
|
| Brake Release Port Dimension |
n/a
|
|
| Painted |
No
|
|
| Paint information |
n/a
|
|
| Special Features Assembly |
Standard
|
|
| Dust seal |
Standard
|
|
| Shaft Seal |
NBR – Standard
|
Additional information
| Flange | 127mm, 162mm, 4 bolts |
|---|---|
| Manufacturer | Eaton Char-Lynn |
| Connections | 1’5/16”-12 UNF |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 246 |
| Shaft | Tapered 44.45mm |
