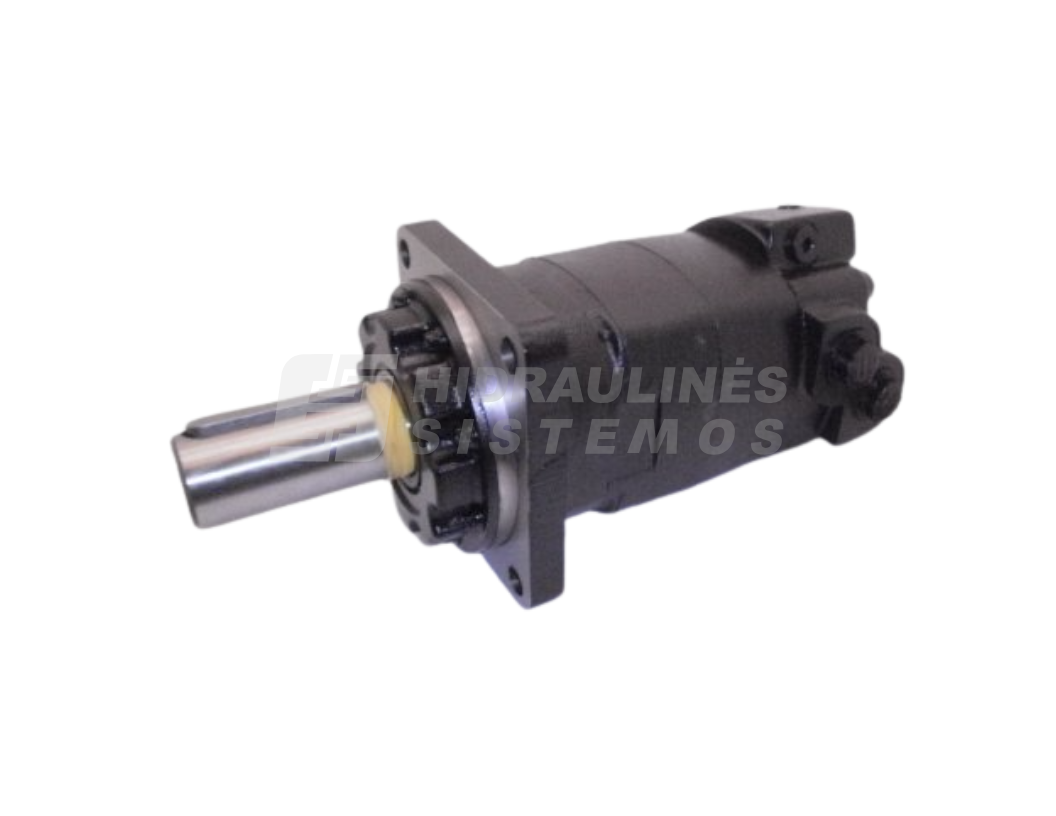

Eaton Char-Lynn hydraulic motor 109-1246-006 M04190AH11AC0300000000000AA00F
1042,63 € excl. VAT
Out of stock
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Model Code |
M04190AH11AC0300000000000AA00F
|
|
| Motor Series |
4000 Series
|
|
| Valve system |
Disc valve with valve drive
|
|
| Orbital gearwheel set type |
Geroler
|
|
| Motor size |
310
|
|
| Geometric displacement [cm3/r [in3/r]] |
311.8 [19.03]
|
|
| Motor type |
Standard
|
|
| Motor function |
Standard
|
|
| Mounting flange type |
4 Bolt – Square
|
|
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] |
125.0 x #, 160.0, 14.3 [4.92 x #, 6.30, 0.56]
|
|
| Shaft type |
Straight
|
|
| Shaft dimension |
Dia. 40 mm, M12 x 1.75-6H thread in shaft end
|
|
| Shaft Key |
Rectangular key, 8 x 12 x 70 mm
|
|
| Main port thread type |
BSP
|
|
| Main port style |
Sideport – staggered
|
|
| Main port dimension |
G 3/4
|
|
| Drain Port Dimension |
G 1/4
|
|
| Brake Release Port Dimension |
n/a
|
|
| Painted |
Yes
|
|
| Paint information |
Primer, Black, Low gloss
|
|
| Special Features Assembly |
Standard
|
|
| Dust seal |
Standard
|
|
| Shaft Seal |
NBR – Standard
|
|
| Seal Kit |
61232-000
|
Additional information
| Flange | 125mm, 160mm, 4 bolts |
|---|---|
| Manufacturer | Eaton Char-Lynn |
| Connections | BSP 3/4” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 312 |
| Shaft | 40mm |
