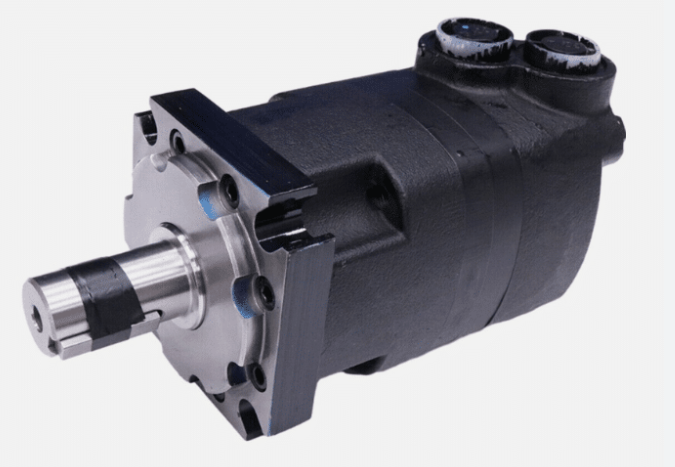

Eaton Char-Lynn hydraulic motor 109-1104-006 M04150AB01AB02000000000000000F
985,00 € excl. VAT
109-1104-006 M04150AB01AB02000000000000000F
Out of stock
109-1104-006 M04150AB01AB02000000000000000F
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Eaton Char-Lynn 109-1104-006 hydraulic motor is a 4000 Series LSHT (Low Speed High Torque) orbital hydraulic motor designed for mobile and industrial hydraulic applications. The Geroler disc valve design ensures smooth operation, high efficiency, and long service life in demanding conditions.
The motor features an SAE B 4-bolt mounting flange, 1 1/4″ straight keyed shaft, and SAE O-ring ports. Suitable for applications requiring high torque at low speeds.
Application:
- Forestry equipment
- Agricultural machinery
- Conveyor and drive systems
- Construction equipment
- Mobile hydraulic systems
Technical specifications:
- Type: LSHT orbital hydraulic motor
- Manufacturer: Danfoss Power Solutions
- Series: Char-Lynn 4000
- OEM code: 109-1104-006
- Model code: M04150AB01AB02000000000000000F
- Displacement: 246.3 cm³/rev
- Design: Geroler, disc valve

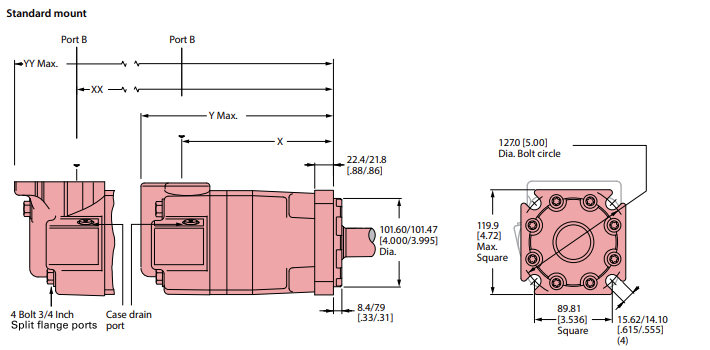

- Mounting flange: SAE B, 4-bolt
- Shaft: 1 1/4″ straight keyed shaft
- Shaft thread: 3/8″-16 UNC-2B
- Ports: 1-1/16″-12 UN SAE O-ring
- Drain port: 7/16″-20 UNF SAE O-ring
- Port style: staggered side ports
- Bearings: tapered roller bearings
- Seal type: standard NBR
Additional information
| Flange | 101.6mm, 127mm, 4 bolts |
|---|---|
| Manufacturer | Eaton Char-Lynn |
| Connections | 1-1/16”-12 UNF |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 246 |
| Shaft | 31.75mm-1’1/4” |
