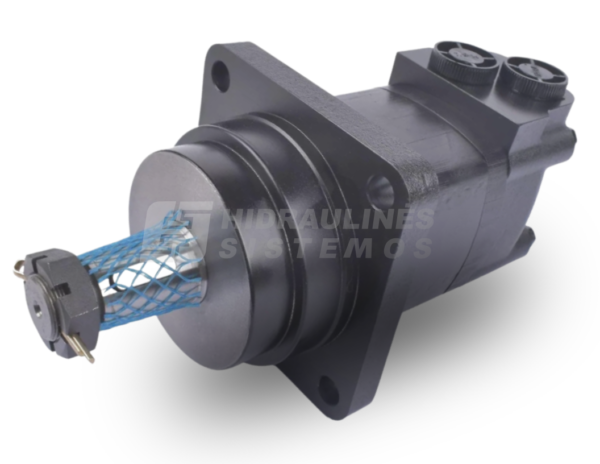

Eaton Char-Lynn hydraulic motor 105-1386-006 6CM/105-1386
900,00 € excl. VAT
6CM/105-1386 105-1386-006
Out of stock
6CM/105-1386 105-1386-006
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Parameter | Value |
|---|---|
| Model Code | M02240BG03AA01000150000AEAFAAF |
| Motor Series | 2000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 395 |
| Geometric Displacement | 393.8 cm³/rev (24.03 in³/rev) |
| Motor Type | Wheel |
| Motor Function | Standard |

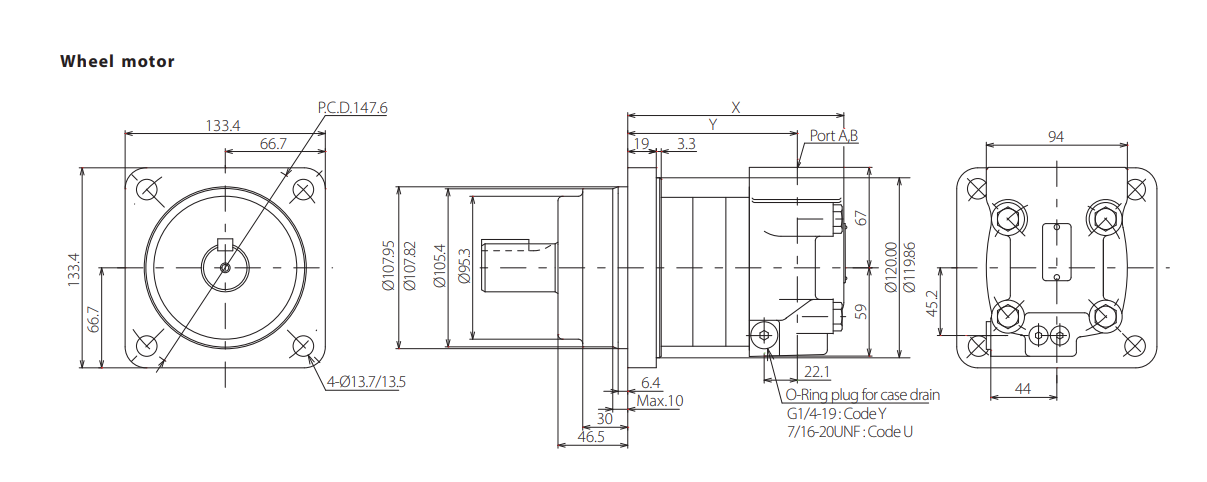

| Mounting Flange Type | 4 Bolt – Wheel |
| Mounting Flange Dimensions (pilot dia × height, bolt circle dia, hole dia) | 108.0 × 6.4 mm, 137.7 mm, 13.6 mm; Rear: 114.3 × # mm, 137.7 mm, 13.6 mm (Special Component) |

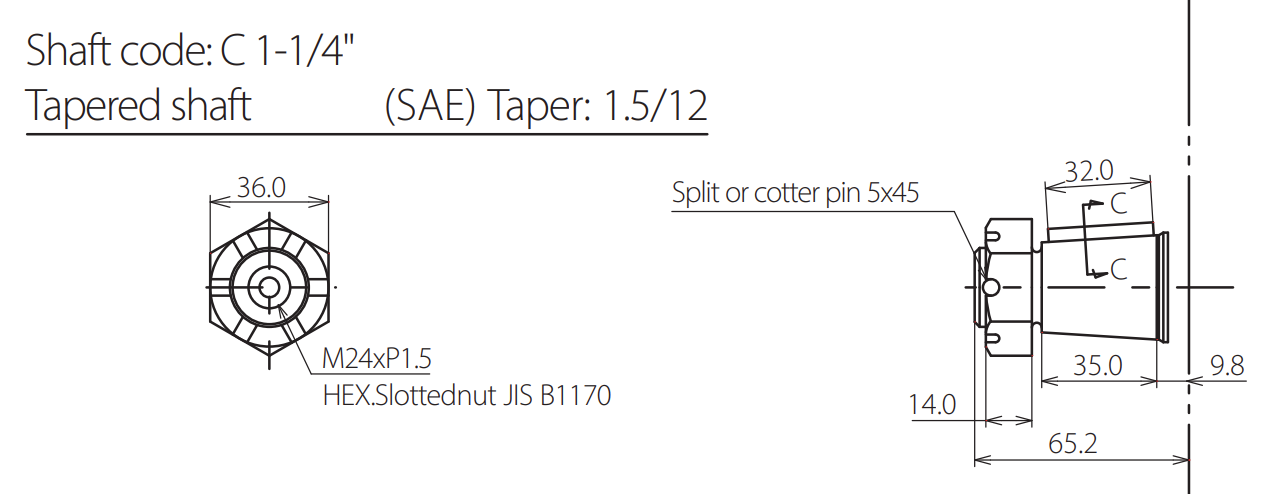

| Shaft Dimension | Dia. 1 1/4 inch, 1:8 SAE J501 taper, 1–20 UNEF-2A thread in shaft end |
| Shaft Key | Square key, 5/16 × 1 inch |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 7/8–14 UNF-2B SAE O-Ring port |
| Drain Port Dimension | 7/16–20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | N/A |
| Painted | Yes |
| Paint Information | Primer, Black, Low gloss |
| Special Features Assembly | Turned component |
| Dust Seal | Extreme duty seal guard |
| Shaft Seal | NBR – Standard |
| Seal Kit | 9900395-000 |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Bulk box |
| Name Tag | Danfoss name tag |
| Design Code | 06 |
| Brand | DANFOSS |
| Product Height | 134.112 mm (5.280 in) |
| Product Length | 231.394 mm (9.110 in) |
| Product Width | 134.112 mm (5.280 in) |
| Sub Brand | CHAR-LYNN |
Additional information
| Flange | For wheels 108mm, 147mm, 4 bolts |
|---|---|
| Manufacturer | Eaton Char-Lynn |
| Connections | 7/8”-14 UNF |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 395 |
| Shaft | Tapered 31.75mm-1’1/4” |
