Worm reducer WE9-62-25H-R/H
1050,00 € excl. VAT
WE9-62-25H-R/H
Out of stock
WE9-62-25H-R/H
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

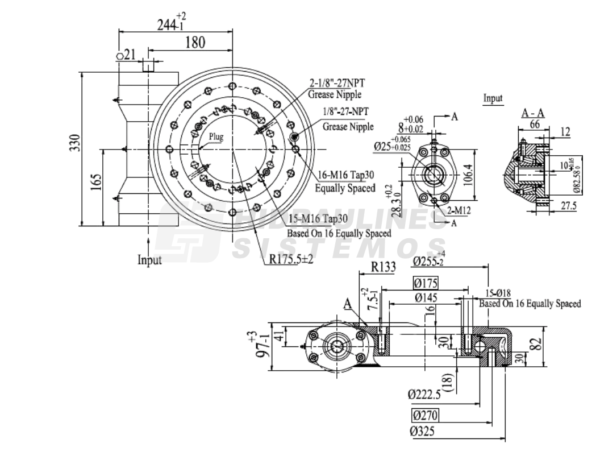

Slewing drive WE9-62-25H-R/H Hydropack is a compact, ready-to-install worm gear drive unit designed for transmitting high torque and rotating heavy loads with precision.
The unit consists of a worm gear and a slewing bearing, allowing it to handle axial, radial, and tilting loads simultaneously. Typically used with a hydraulic motor (not included).
Technical specifications:
- Type: worm gear slewing drive
- Model: WE9-62-25H-R/H
- Gear ratio: 62:1
- Max output torque: ~8 kNm
- Tilting moment: ~33.9 kNm
- Holding torque: ~38.7 kNm
- Output speed: < 2.5 rpm
- Axial load: up to ~550 kN (static)
- Radial load: up to ~205 kN (static)
- Mounting: right-hand (R)
- Shaft: 25 mm (for hydraulic motor)
- Housing: sealed
Features:
- High torque capacity
- Precise and stable rotation
- Compact design
- Suitable for harsh environments
