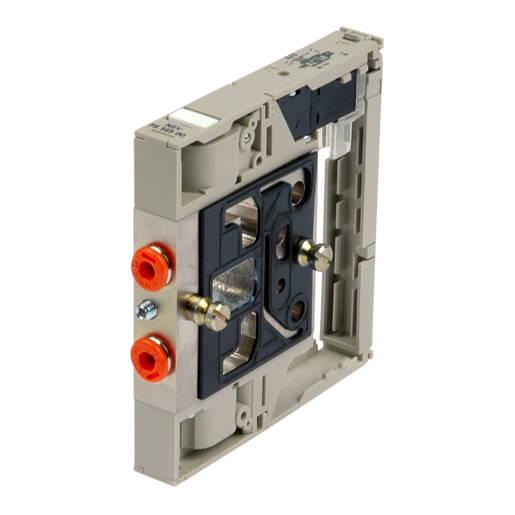

Valve MULTIMACH 5/2 6 mm 24 VDC Metal Work
69,00 € excl. VAT
7069030132
Out of stock
7069030132
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Metal Work MULTIMACH 7069030132 is a 5/2 monostable pneumatic valve designed for MULTIMACH valve islands. The valve features Ø6 mm push-in connections for working ports 2 and 4 and 24 VDC electrical actuation.
The MULTIMACH system provides a compact modular solution for pneumatic control applications. The valve is designed for filtered compressed air without lubrication; if lubrication is used, it must be continuous.
Technical Data
- Manufacturer: Metal Work
- Series: MULTIMACH
- Part number: 7069030132
- Valve type: 5/2
- Function: Monostable
- Working ports 2 and 4: Ø6 mm push-in
- Voltage: 24 VDC ±10%
- Power: 1.2 W
- Operating pressure: 3–7 bar
- Flow rate at 6 bar, ΔP 1 bar: 500 Nl/min
- Response / return time at 6 bar: 8 / 33 ms
- Operating temperature: –10 to +60 °C
- Degree of protection: IP51
- Solenoid rating: 100% ED
- Fluid: Filtered compressed air, lubrication not required
- Weight: 90 g
