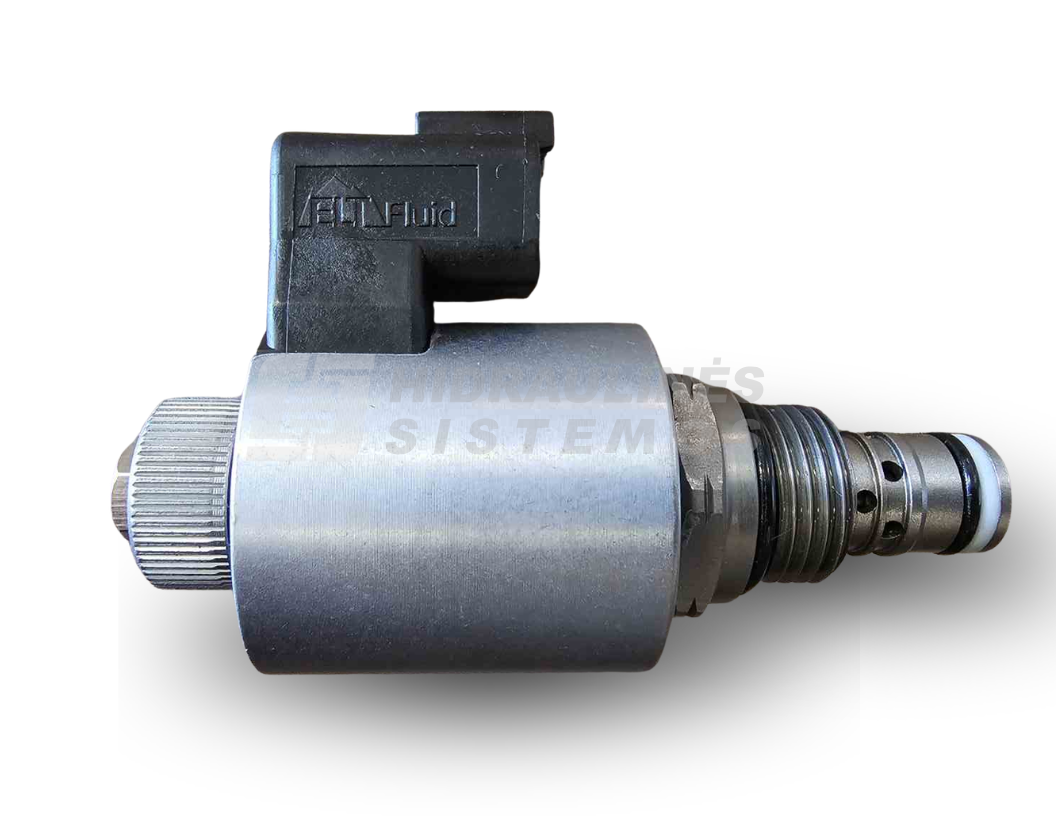

Valve 2/2 D12.6 3/4 JIC NO 300bar solenoid d13 30 l/min with coil ELT Fluid E08N-23L
50,00 € excl. VAT
ELT Fluid E08N-23L E08N-23LEC S130-48DU-20S
1 in stock
ELT Fluid E08N-23L E08N-23LEC S130-48DU-20S
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
The ELT Fluid E08N-23L is a 2-way, 2-position cartridge solenoid valve designed to hold loads or block flow in high-pressure hydraulic applications where low leakage is required. It features a pilot-operated poppet design and a normally closed (NC) configuration.
When the coil is de-energized, flow is allowed in both directions (1↔2). When energized, the valve blocks flow from port 2 to port 1. The valve includes a manual override function for emergency operation and maintenance purposes.
Technical data
- Manufacturer: ELT Fluid
- Model: E08N-23L
- Type: Cartridge solenoid valve
- Design: 2/2 pilot-operated poppet
- Function: Normally closed (NC)
- Manual override: Yes
- Nominal diameter: 12.6 mm
- Thread: 3/4-16 UNF-2A
- Maximum working pressure: 300 bar
- Proof pressure: 350 bar
- Maximum flow: 30 l/min
- Minimum flow: 0.5 l/min
- Leakage: 0.25 cc/min
- Fluid: Mineral hydraulic oil
- Viscosity range: 15–250 cSt
- Seals: NBR / PTFE backup ring
- Fluid temperature: -20 °C to +80 °C
- Ambient temperature: -30 °C to +60 °C
-
Coil:
- 24 V DC
- 18 W
- 100% duty cycle
- DIN connector
- Coil code: S130-18P
- Cavity: SCN0820
Additional information
| Diameter | 12.6 mm |
|---|---|
| Thread | UNF 3/4′ |
| Type | NO |
