Product information

Specifications

Description

This is a 5-stage telescopic hydraulic cylinder designed for applications requiring high lifting height, most commonly used in dump trucks. It provides high lifting force and long stroke, enabling efficient tipping of loads.

  • Type: GFH 1000
  • Number of stages: 5
  • Max stroke: 5850 mm
  • Max pressure: 250 bar
  • Lifting force: up to ~307 kN (depending on stage)
  • Oil volume: approx. 76 l
  • Weight: approx. 407 kg
  • Largest stage diameter: Ø167 mm

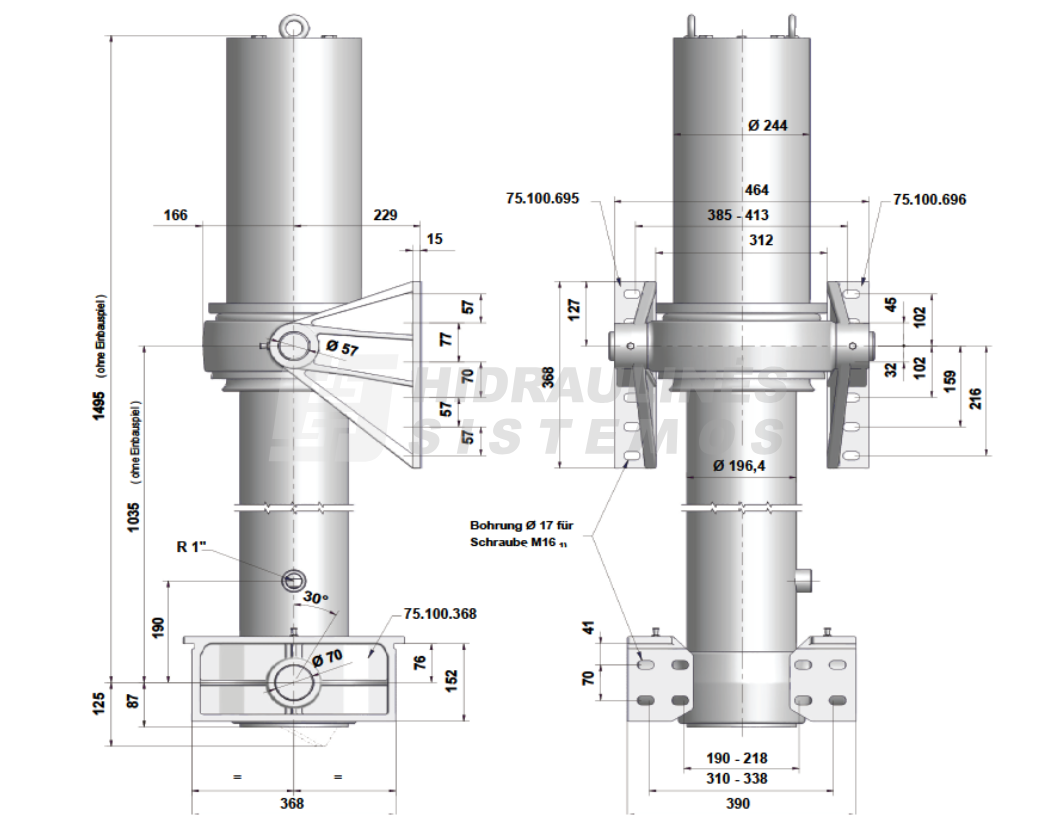

  • Other stage diameters (according to drawing): Ø127 / Ø77 / Ø70 / Ø57 mm
  • Mounting hole: Ø17 mm (M16 bolts)
  • Connection: BSP1″
