Telescopic cylinder 8-240-1875 25T h460 TC8010S
Telescopic cylinder 8-240-1875 25T h460 TC8010S
Add to wishlist

Telescopic cylinder 8-240-1875 25T h460 TC8010S

Full product specification

2072,00 € excl. VAT

TC8010S

Out of stock

TC8010S

Enter your email address and we will notify you as soon as the item is available.
SKU: 8010S Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

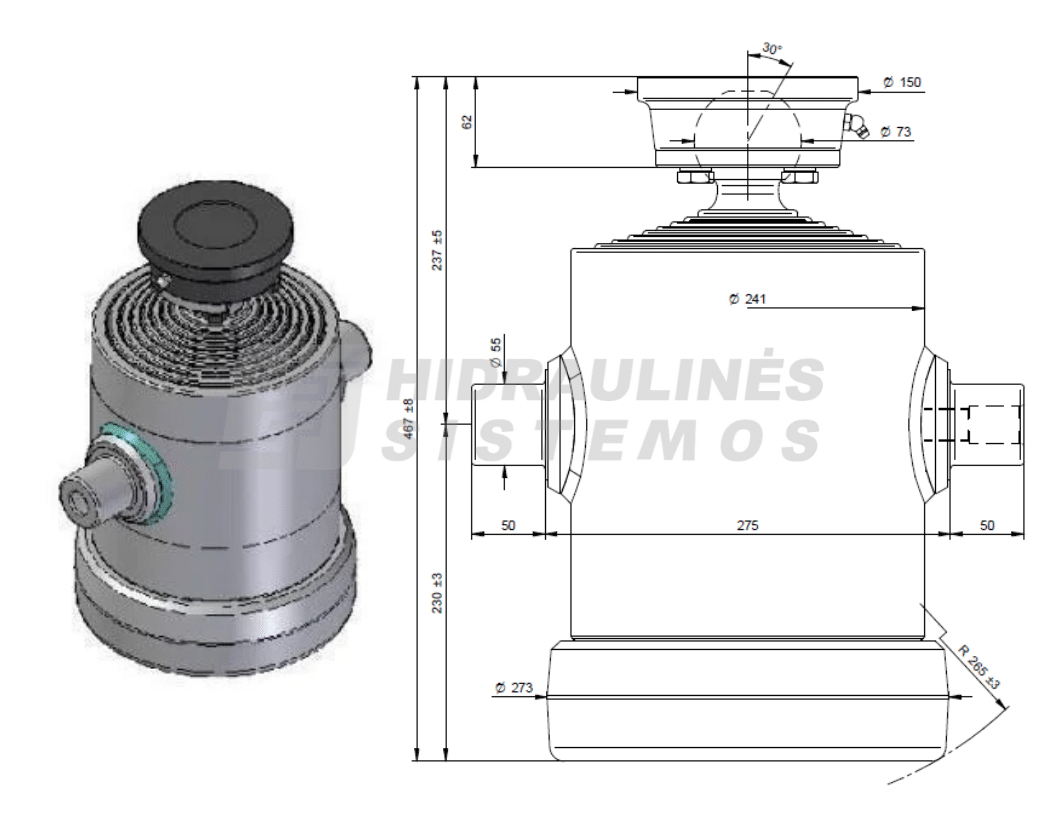

Di Natale–Bertelli 8010S telescopic hydraulic cylinder designed for tipper body lifting mechanisms. Its eight-stage telescopic construction provides a long extension stroke while maintaining compact dimensions in the retracted position.

The cylinder has a total stroke of 1870 mm and a maximum lifting capacity of 25 tonnes at 180 bar. It features a 73 mm diameter ball mounting for installation in tipping mechanisms. The telescopic stage diameters range from 68 to 210 mm.

The cylinder surface is treated using the Tenifer process. The maximum operating pressure is 180 bar, and the oil capacity is 30 litres.

Technical Data

Parameter

Value

Product code

8010S

Manufacturer

Di Natale–Bertelli

Type

Telescopic hydraulic cylinder

Number of stages

8

Total stroke

1870 mm

Maximum lifting capacity

25 tonnes at 180 bar

Maximum operating pressure

180 bar

Ball mounting diameter

73 mm

Stage diameters

68 / 88 / 107 / 126 / 145 / 165 / 187 / 210 mm

Cylinder body diameter

241 mm

Oil capacity

30 l

Manufacturer-specified length

320 mm

Surface treatment

Tenifer

Weight

125 kg

Application

Tipper body lifting mechanisms

Additional information

Eiga

1875
Gamintojas

DiNatale
Pakopų skaičius

8
Pirmos sekcijos plotis

240
