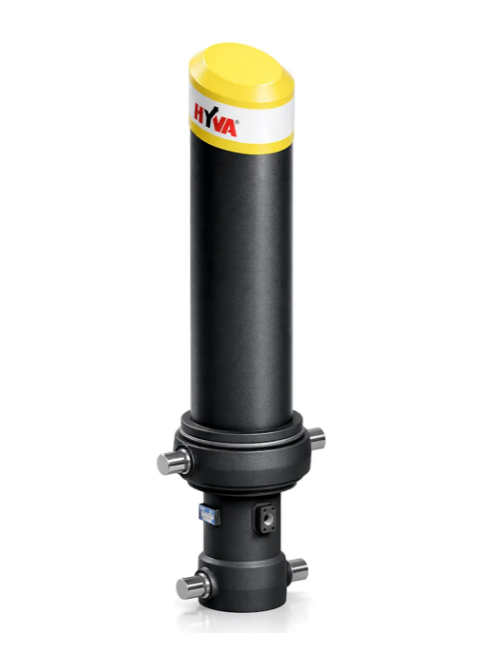

Telescopic cylinder 4-137-5180 FC A137-4-05180-000-K0343 HYVA
2964,50 € incl. VAT
70125410, FC A137-4-05180-000-K0343
Out of stock
70125410, FC A137-4-05180-000-K0343
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Telescopic hydraulic cylinder HYVA FC A137-4-05180-000-K0343 is a front-end tipping cylinder designed for dump trucks. It belongs to the HYVA Alpha series and is widely used in standard transport and construction applications.
The cylinder features a 4-stage design, providing high lifting capacity and stable operation. Its compact construction helps reduce weight and optimize installation space.
Technical specifications:
- Type: telescopic front-end cylinder
- Model: FC A137-4-05180-000-K0343
- Number of stages: 4
- Total stroke: 5180 mm
- Max working pressure: 250 bar
- Tipping capacity: up to ~53 ton
- First stage diameter: 137 mm
- Weight: ~231 kg
- Working volume: ~50 L
- Mounting: front-end
Features:
- High lifting capacity
- Compact and lightweight design
- Efficient tipping performance
- Reliable in heavy-duty conditions
