Tank heater, screwed-in 1.46 kW 380 V 650 mm G1’1/2 BSP

Full product specification

1200,00 € excl. VAT

PTHK-90-G1’1/2

2 in stock

PTHK-90-G1’1/2

SKU: TH18691 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

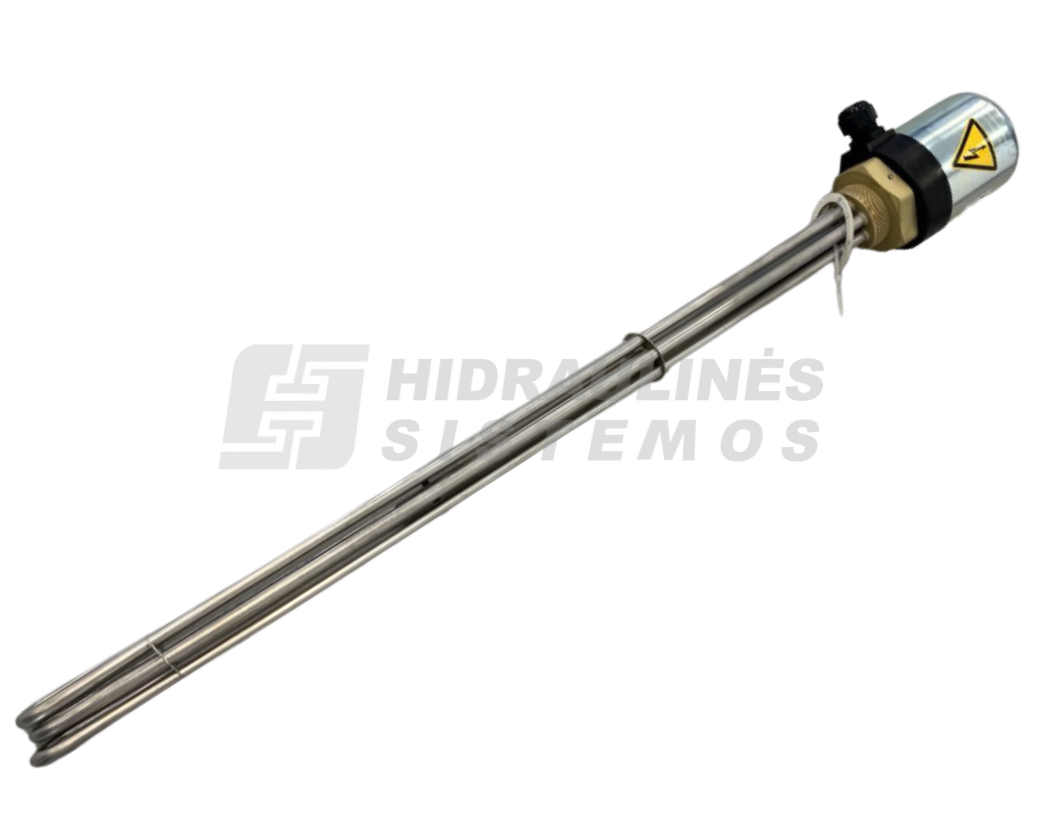

HBE RHK G1 1/2″ is a screw-in electric tank heater designed for pre-heating mineral-based hydraulic oil. Pre-heating helps reduce the viscosity of cold hydraulic oil and provides more suitable operating conditions for hydraulic systems at low ambient temperatures.

The heater is designed for horizontal installation below the oil level, ensuring that the heating section remains immersed in hydraulic oil during operation. The RHK design uses tubular heating elements and a G1 1/2″ threaded connection for installation directly into the hydraulic oil tank.

The standard RHK G1 1/2″ heater with a 650 mm immersion depth has a rated power of 1450 W (1.45 kW) and an IP65 protection rating.

Technical Data

  • Manufacturer: HBE
  • Series: RHK
  • Type: Screw-in tubular oil tank heater
  • Application: Pre-heating of mineral-based hydraulic oil
  • Power: 1450 W (1.45 kW)
  • Immersion depth: 650 mm
  • Connection thread: G1 1/2″
  • Installation position: Horizontal, below oil level
  • Protection class: IP65
  • Recommended surface load for hydraulic oil: approx. 1.5 W/cm²
  • Material: Steel
  • Cap: Bright galvanised steel
