Tank breather filter ELFL P 3 F 3 W 1.0/HYDAC
55,00 € excl. VAT
Out of stock
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

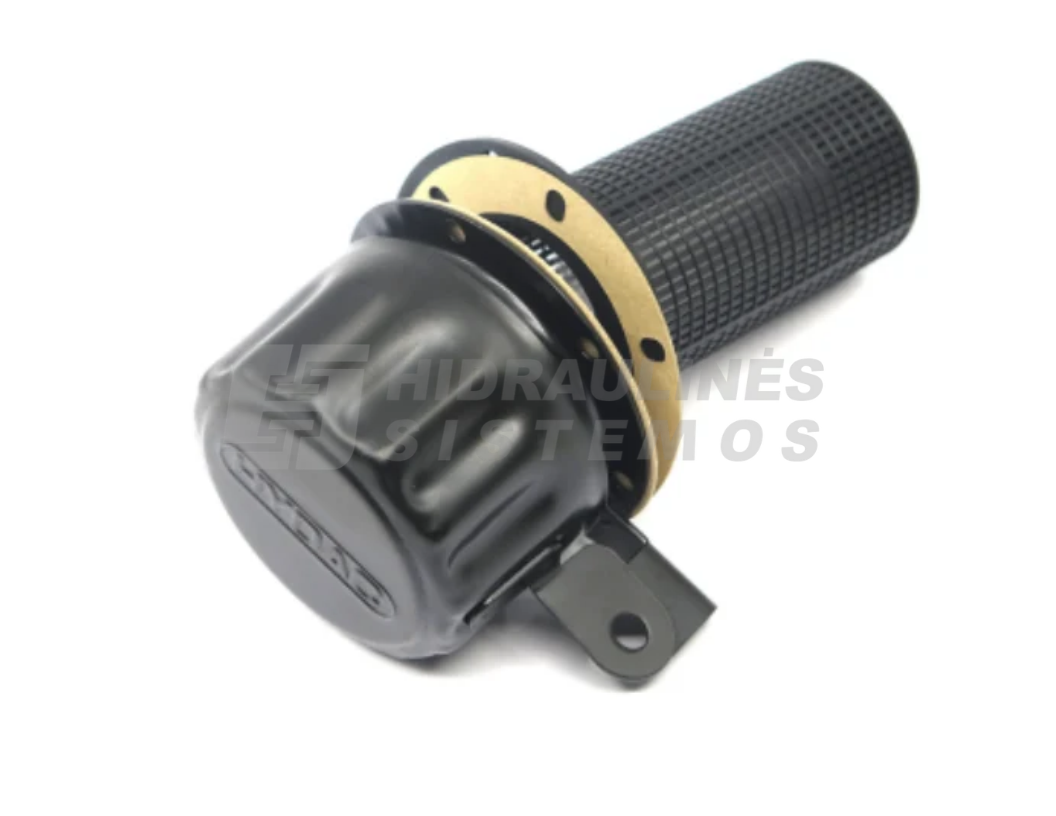

HYDAC ELFL P 3 F 3 W 1.0 is a lockable hydraulic tank breather filter with an integrated filler strainer. It is designed to filter air entering the hydraulic reservoir and reduce the ingress of airborne contamination into the hydraulic system.
The ELFL 3 consists of an air filter top, flange mounting and filler strainer. Its lockable design helps control access to the hydraulic reservoir filling point.
The filter uses a 3 µm absolute paper filter element and the standard version is suitable for mineral and lubricating oils.
Technical Data
- Manufacturer: HYDAC
- Model: ELFL P 3 F 3 W 1.0
- Series: ELFL 3
- Type: Lockable tank breather filter with filler strainer
- Filter material: Paper
- Filtration rating: 3 µm absolute
- Connection: Flange
- Flange interface: DIN 24557, Part 2
- Clogging indicator: None
- Temperature range: –30 to +100 °C
- Housing material: Zinc-plated / plastic-coated steel
- Filler strainer material: Synthetic
- Seal: NBR
- Overall height: 159 mm
- Filter top diameter: 76 mm
- Filler strainer diameter: 49 mm
- Maximum outside dimension: 83 mm
- Weight: approx. 0.30 kg
