Suction hose 63 mm ‘Spirtex’ 10 bar

Full product specification

38,58 € excl. VAT

Corrugated hose with high density textile cord and steel spiral, suitable for petroleum products.

0.75 in stock

Corrugated hose with high density textile cord and steel spiral, suitable for petroleum products.

SKU: 4137 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

Spirtex is a flexible hydraulic suction and return hose designed for low-pressure hydraulic systems where vacuum resistance and reliable fluid transfer are required. It is intended for hydraulic oil suction and return lines and is suitable for use with mineral oils, water, glycol solutions, and other hydraulic fluids.

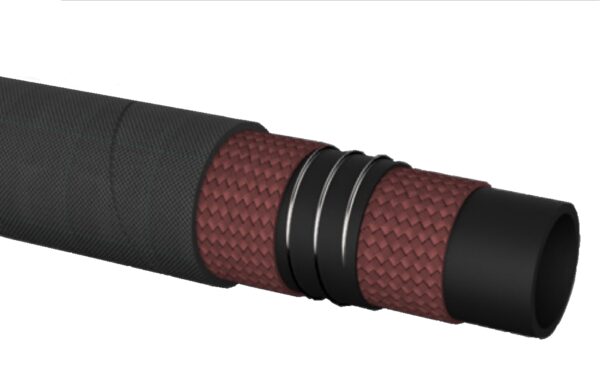

The hose is reinforced with textile braiding and a steel wire helix, providing excellent vacuum resistance while maintaining flexibility and dimensional stability during operation. Its weather-resistant synthetic rubber cover ensures long service life even in demanding working conditions.

Technical specifications:

  • Inner diameter: 63 mm (2.1/2″)
  • Type: SAE 100 R4 suction/return hydraulic hose
  • Working pressure: 10 bar
  • Vacuum resistant: Yes (steel wire helix reinforcement)
  • Temperature range: -40°C to +100°C
  • Tube: NBR synthetic rubber
  • Cover: Weather-resistant synthetic rubber
