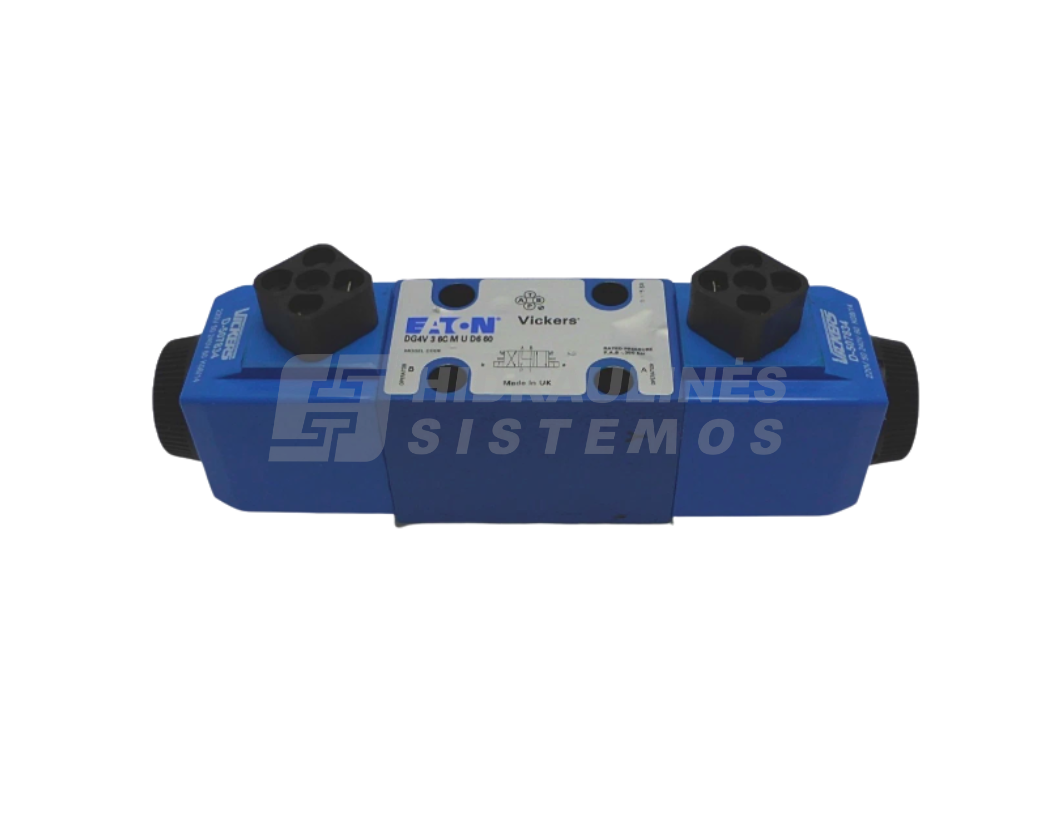

Solenoid-operated directional valve NG6 4/3, spool type 6C P-A-B-T, 220 VAC, DG4V-3 6C MUD660 Danfos
178,50 € excl. VAT
Industrial valve 859726 DG4V36CMUD660
Out of stock
Industrial valve 859726 DG4V36CMUD660
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Characteristic | Description |
|---|
| Actuation Type | Solenoid operated |
| Brand | Vickers by Danfoss |
| Coil Rating | 220 VAC 50 Hz / 240 VAC 60 Hz |
| Design Series | 60 Series |
| Electrical Connection | ISO 4400 (DIN 43650) connector |
| Energising Time | 15–23 ms |
| Maximum Flow Rate (GPM) | 21.0 |
| Maximum Flow Rate (LPM) | 80.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Interface | ISO 4401-03 |
| Manual Override | Plain |
| Model Code | DG4V36CMUD660 |
| Performance | High performance |
| Power Consumption | 61 VA (50 Hz) / 58 VA (60 Hz) |
| Pressure Rating (bar) | 350 |
| Pressure Rating (PSI) | 5000 |
| Product Height (in) | 3.420 |
| Product Length (in) | 7.870 |
| Product Length (mm) | 199.898 |
| Product Width (in) | 1.800 |
| Product Width (mm) | 45.72 |
| Seal Type | Viton |
| Fluid Type | Water glycol |
| Solenoid Energising Identification | Standard as per ANSI B93.9 |
| Special Features | None |
| Spool Position Monitor | No |
| Spool Type | Spool 6 |
| Spring Arrangement | Spring centred |
| Stage | Single stage |
| Surge Suppression Damper | No |
| Tank Port Pressure Rating (bar) | 210 |
| Tank Port Pressure Rating (PSI) | 3000 |
| Valve Mount Type | Subplate / manifold mounted |
| Valve Type | Directional control valve |
| Maximum Working Temperature (°C) | 70 |
| Maximum Working Temperature (°F) | 158 |
| Minimum Working Temperature (°C) | -20 |
| Minimum Working Temperature (°F) | -4 |
Additional information
| Size | NG6, CETOP-3 |
|---|---|
| Manufacturer | Danfoss |
| Voltage | 220 VAC |
| Spool type | 6C (P.A-B-T) |
| Maximum pressure | 350 bar |
| Flow rate | 80 l/min |
| Type | 4/3 |
