Shaft coupling Z-18, 35.5x42 L60
Shaft coupling Z-18, 35.5x42 L60
Add to wishlist

Shaft coupling Z-18, 35.5×42 L60

22,00 € excl. VAT

Out of stock

Enter your email address and we will notify you as soon as the item is available.
SKU: 435542 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

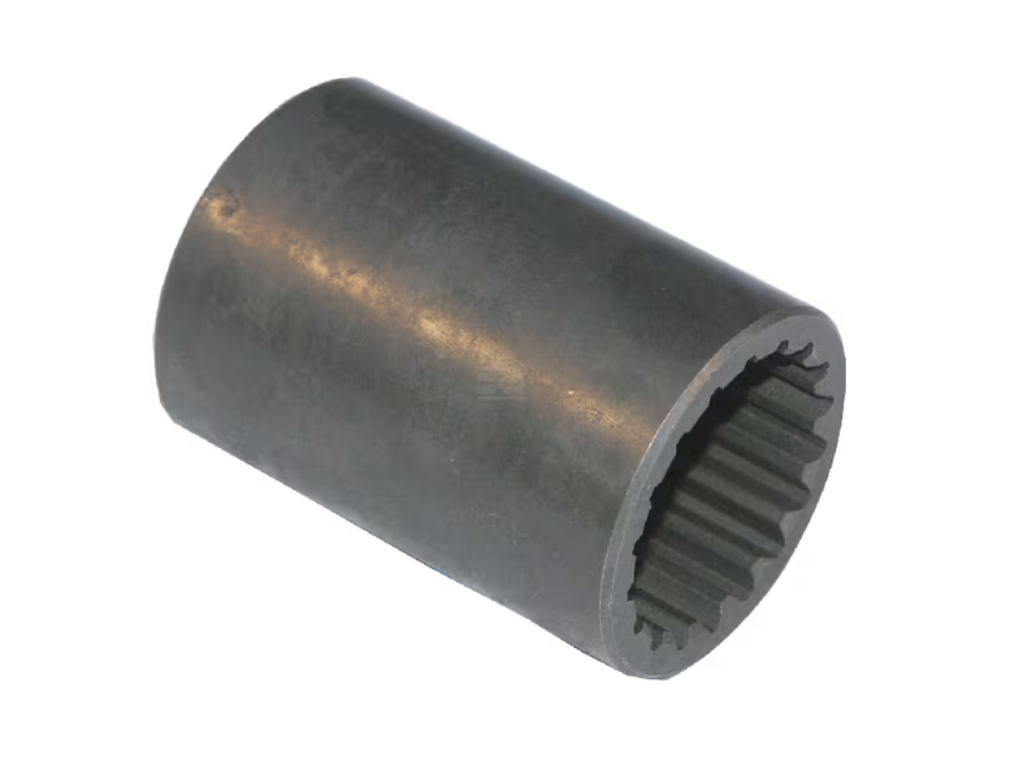

Borelli MA18 is a cylindrical splined coupling sleeve designed to connect a pump shaft to a drive. The coupling features 18 internal splines and a cylindrical outer surface.

The sleeve is manufactured from heat-treated UNI 16CrNi4/Pb steel. It has an inside diameter of 35.5 mm, outside diameter of 42 mm and length of 60 mm. The internal splined connection complies with DIN 5482.

Technical Data

  • Brand: Borelli
  • Part number: MA18
  • Type: Splined shaft coupling sleeve
  • Application: Connection between pump shaft and drive
  • Inside diameter: 35.5 mm
  • Outside diameter: 42 mm
  • Length: 60 mm
  • Internal splines: 18
  • Standard: DIN 5482
  • Exterior: Cylindrical
  • Material: Heat-treated UNI 16CrNi4/Pb steel
